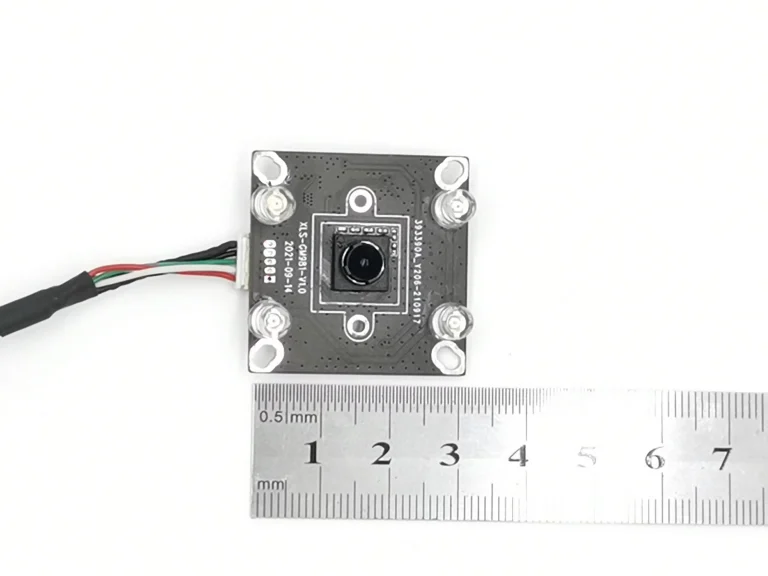

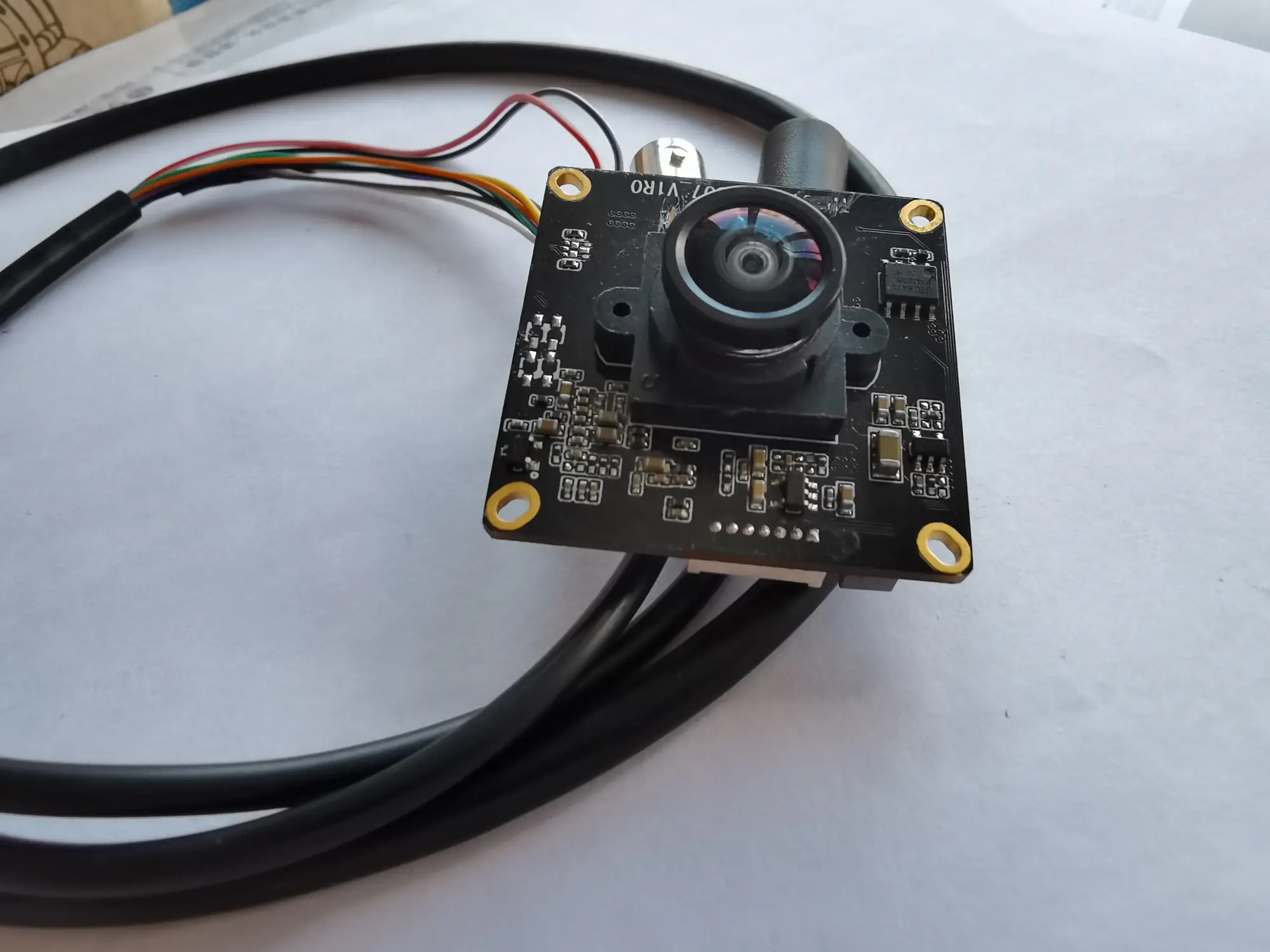

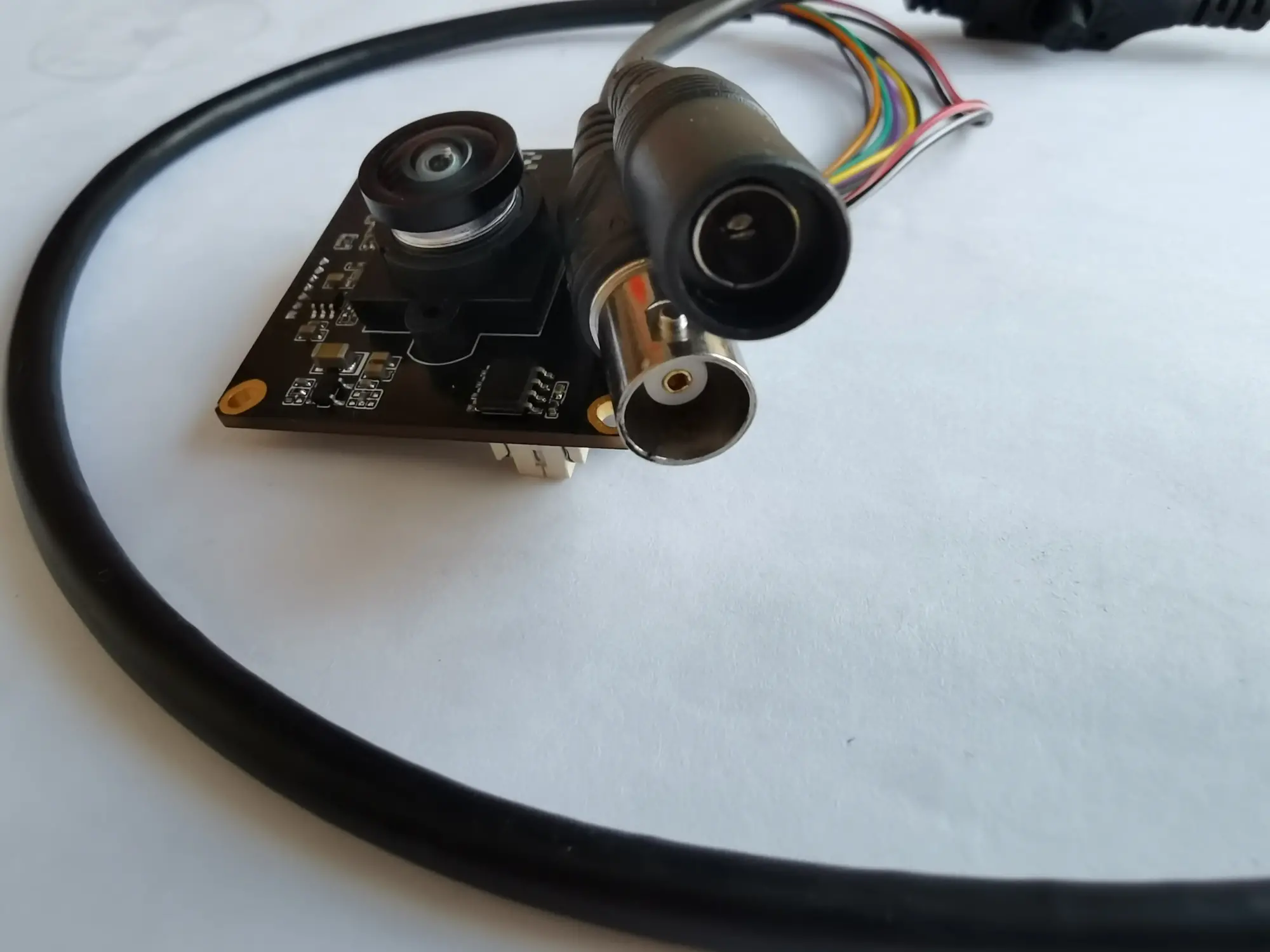

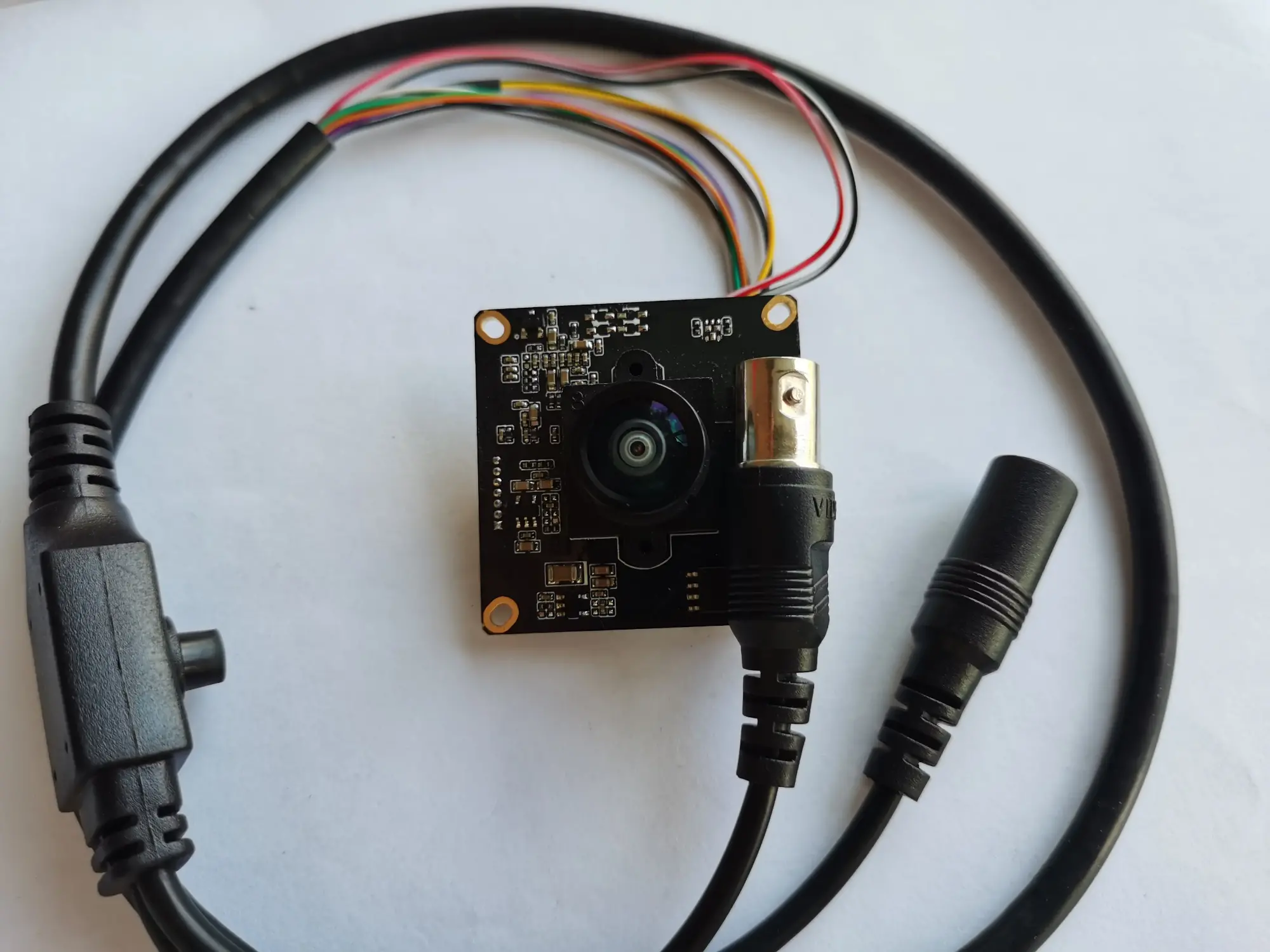

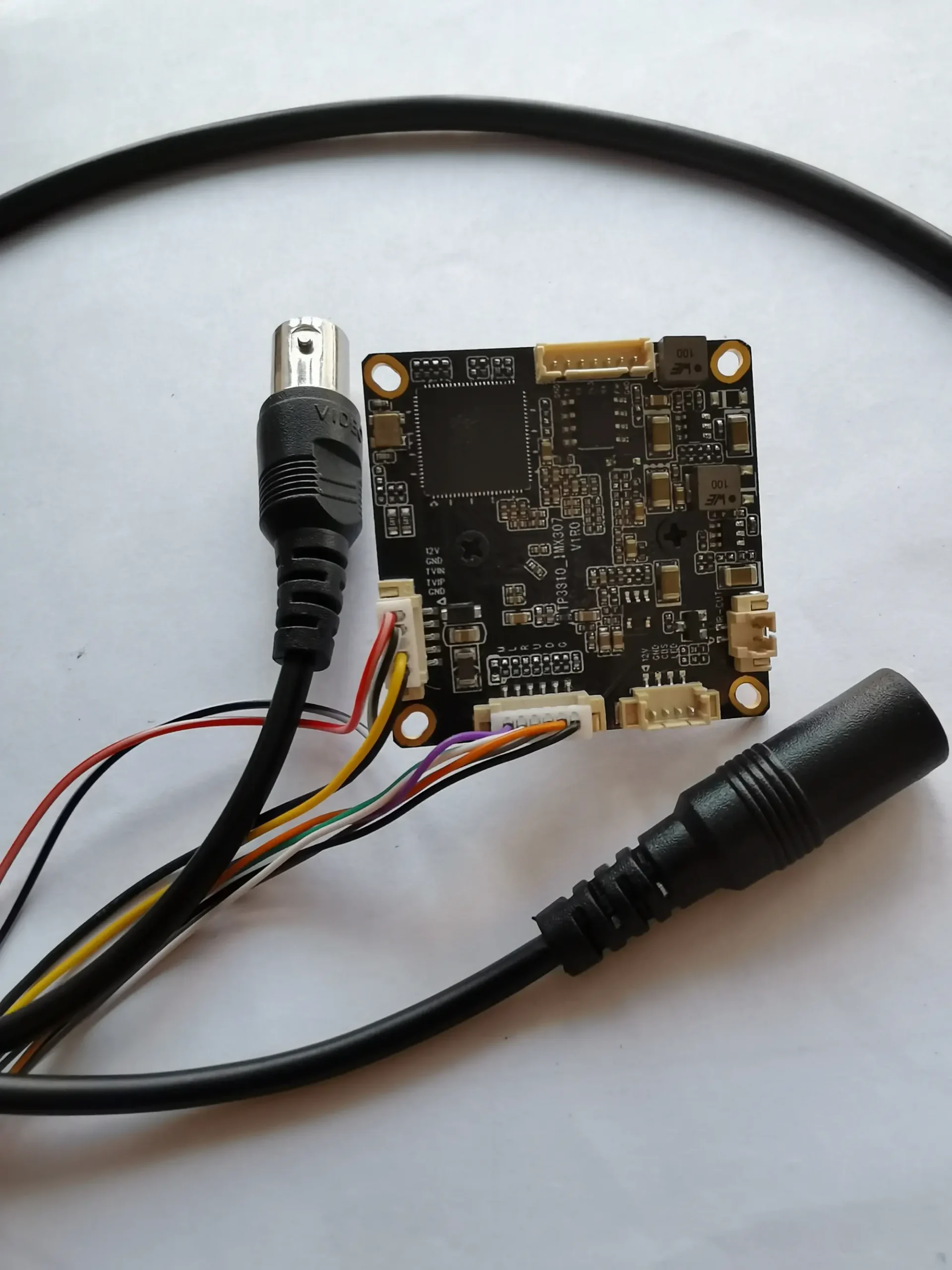

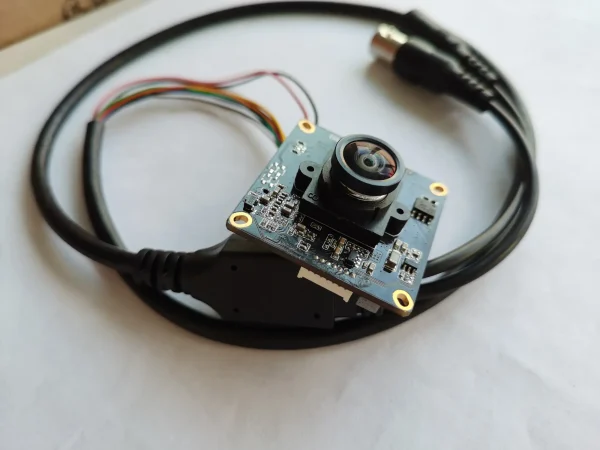

2MP 1080P AHD Camera Module with 180 Degree Fisheye Lens and distortion correction.

2MP 1080P AHD camera module with IMX307 of Sony sensor.
Super wide view angle and different vision.
180 degree fisheye lens with on board distortion correction software, round scene and flat scene can be changed by one click.
AHD format data, analog signal: high definition and lower color reproduction deviation produce sharp image and accurate information
May used in backup camera, panorama camera, conferencing camera, etc.
Payment Terms: T/T
Delivery Time: 2-3weeks
Supply Ability: 100000 pieces/month

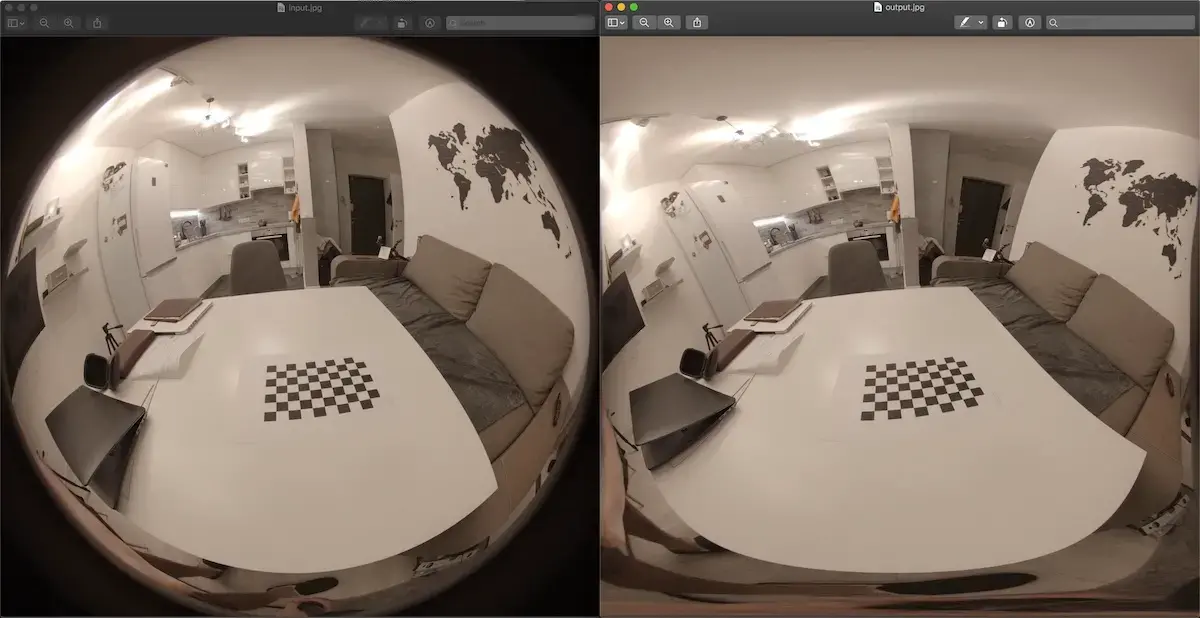

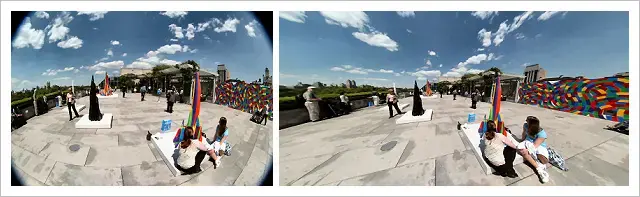

Fisheye lenses are often used to enlarge the field of view of a conventional camera, the FOV may reach 180 degrees or even more, but the round scene looks strange for a human. We people are familiar with flat scene without any distortion. So Fisheye lens distortion correction comes out, it’s an image processing application which transforms the distorted fisheye images back to the natural-looking vision. We have developed a fisheye lens distortion correction system on an AHD camera board that includes a single chip. It’s a real-time, performance critical and cost sensitive systems with hardware-software interaction mechanisms.
