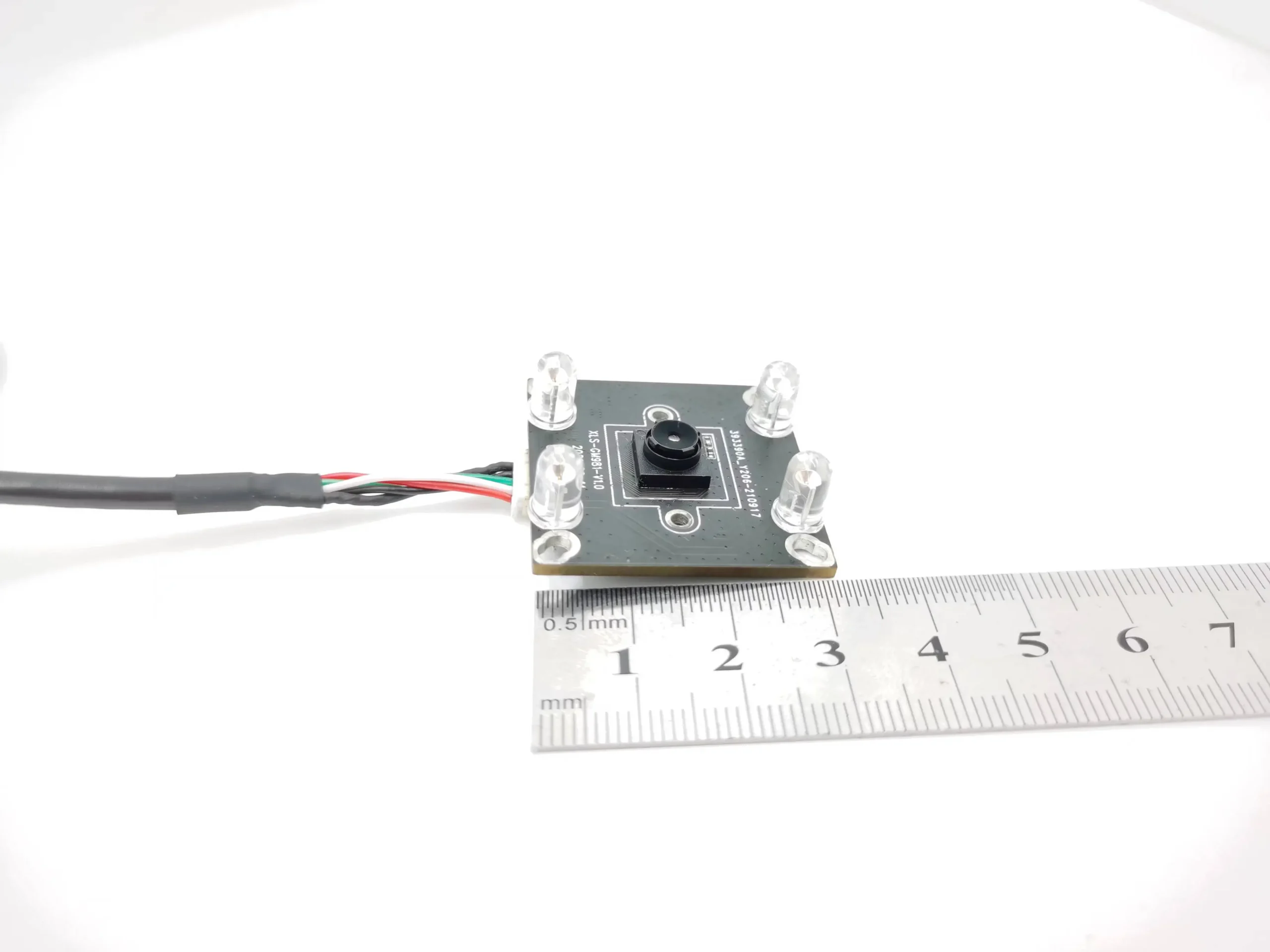

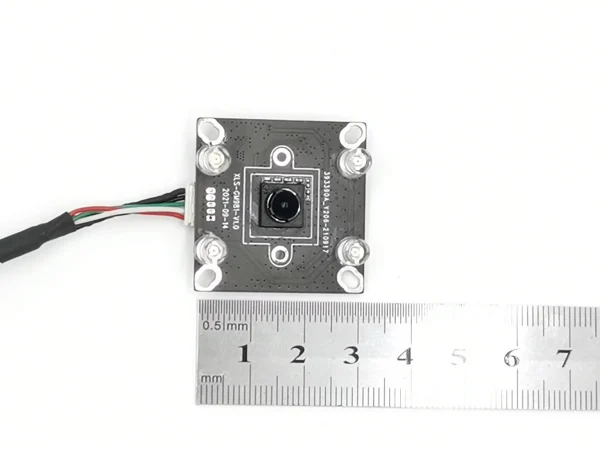

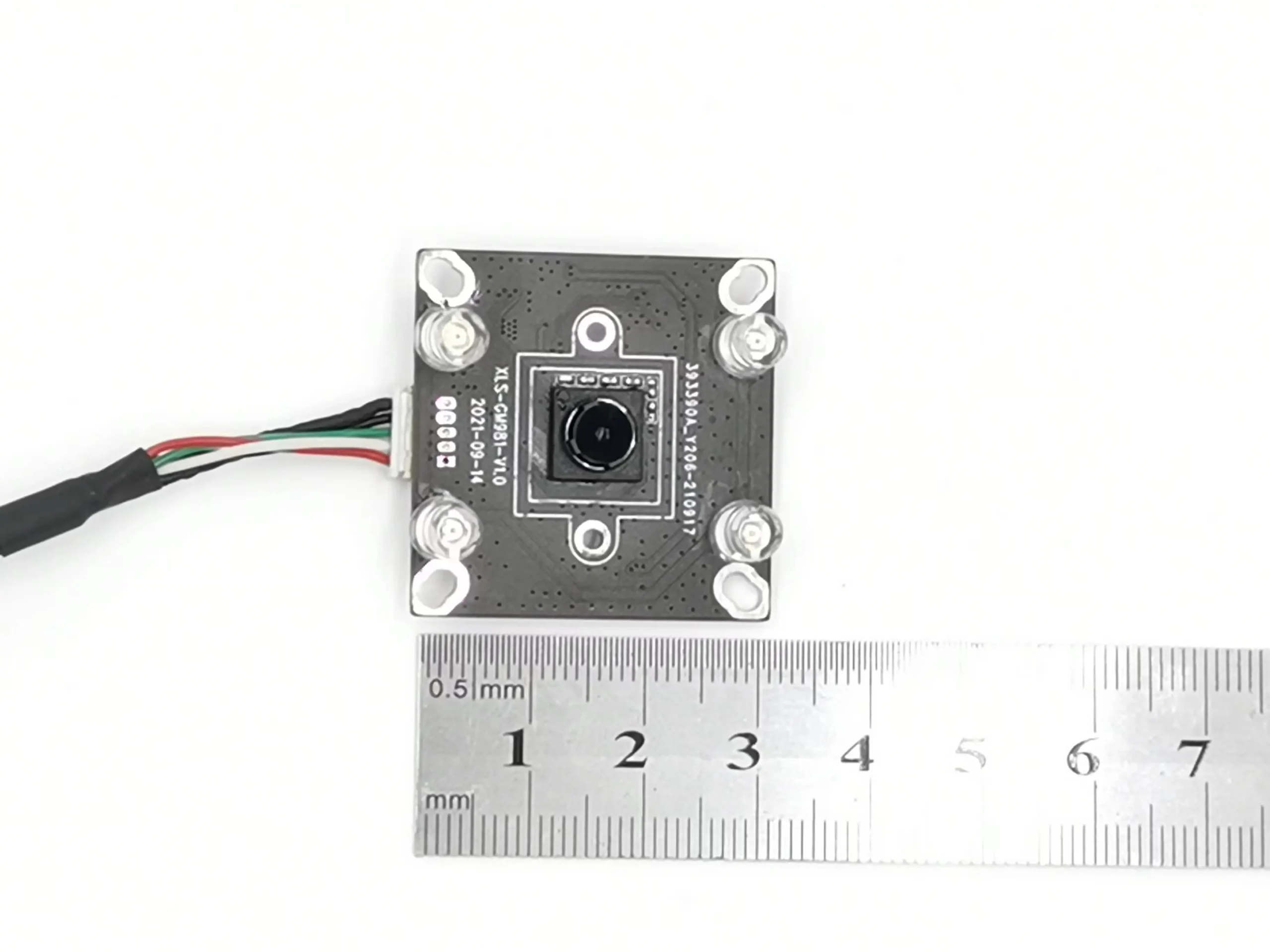

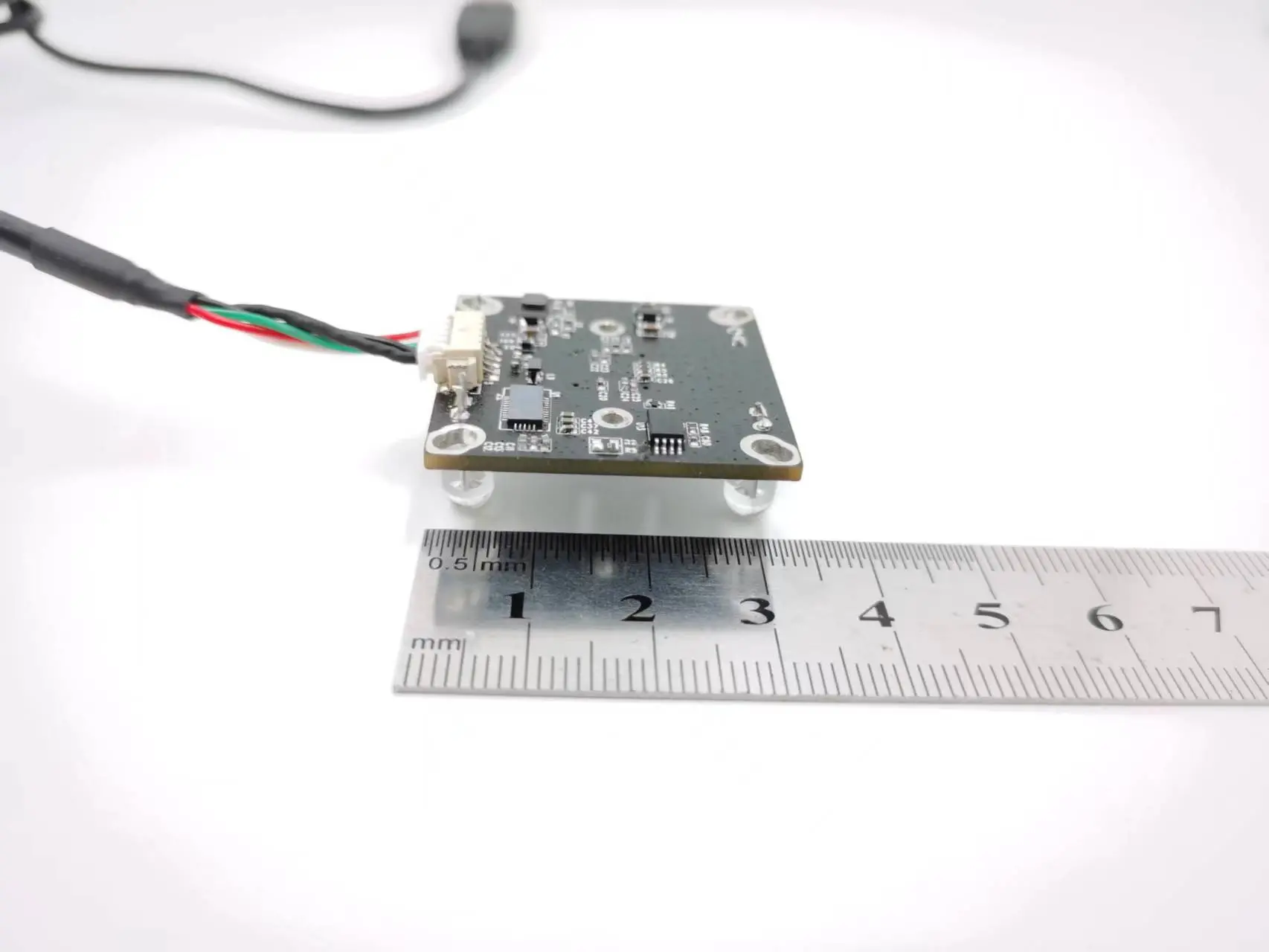

720p HD USB camera with four 850nm IR LED
This is a 720p HD USB camera with four 850nm IR LED, suitable for face recognition products, UVC compatible, lens FOV and PCB shape could be custamizable, 50cm focus distance is the best distance for face detection, if you need near or longer distance, please feel free contact CK vision CAM to set your favorite focus length. If you want to use this camera to other industry, lets discuss the detail, CK vision CAM will custom camera module for you.
Share to:
|
Model |
GC1054-USB |
REMARKS |
|
|
Image Sensor |
GC1054 |
|
|
|
Image Sensor Size |
1/4 |
|
|
|
Effective Pixels |
1280*720 |
|
|
|
Pixel size |
3.0μm x 3.0μm |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
UVC |
|
|
|
Video output format |
MPJG YUV2 |
|
|
|
Maximum Frame Rates and Resolution |
1280×720 @ 30fps 640×480 @ 60 fps |
MJPG YUV2 |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
≥0.001LUX at F2.2 |
With LED |
|
|
Digital interface |
5pin 1.25mm USB2.0 |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 400mW |
|
|
IR-LED |
Max 760mW |
|
|
|
OS |
WinXP/Vista/Win7/Win8 Linux with UVC（above linux-2.6.26） MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |
|
|
|
Lens size |
M12 diameter；14mm height |
|
|
|
Lens Construction |
4P + 850IR |
|
|
|
F/NO |
2.0 |
|
|
|
EFL |
2.67mm |
|
|
|
FOV |
D:80° H:73° V:44° |
|
|
|
Shooting distance |
Fixed Focus， 50cm-infinity |
||
