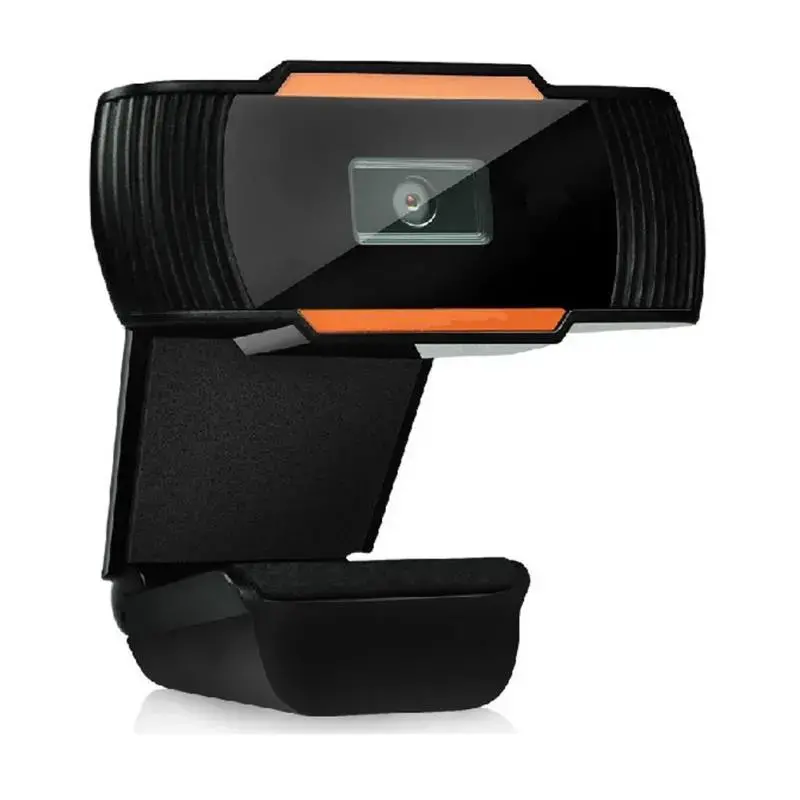

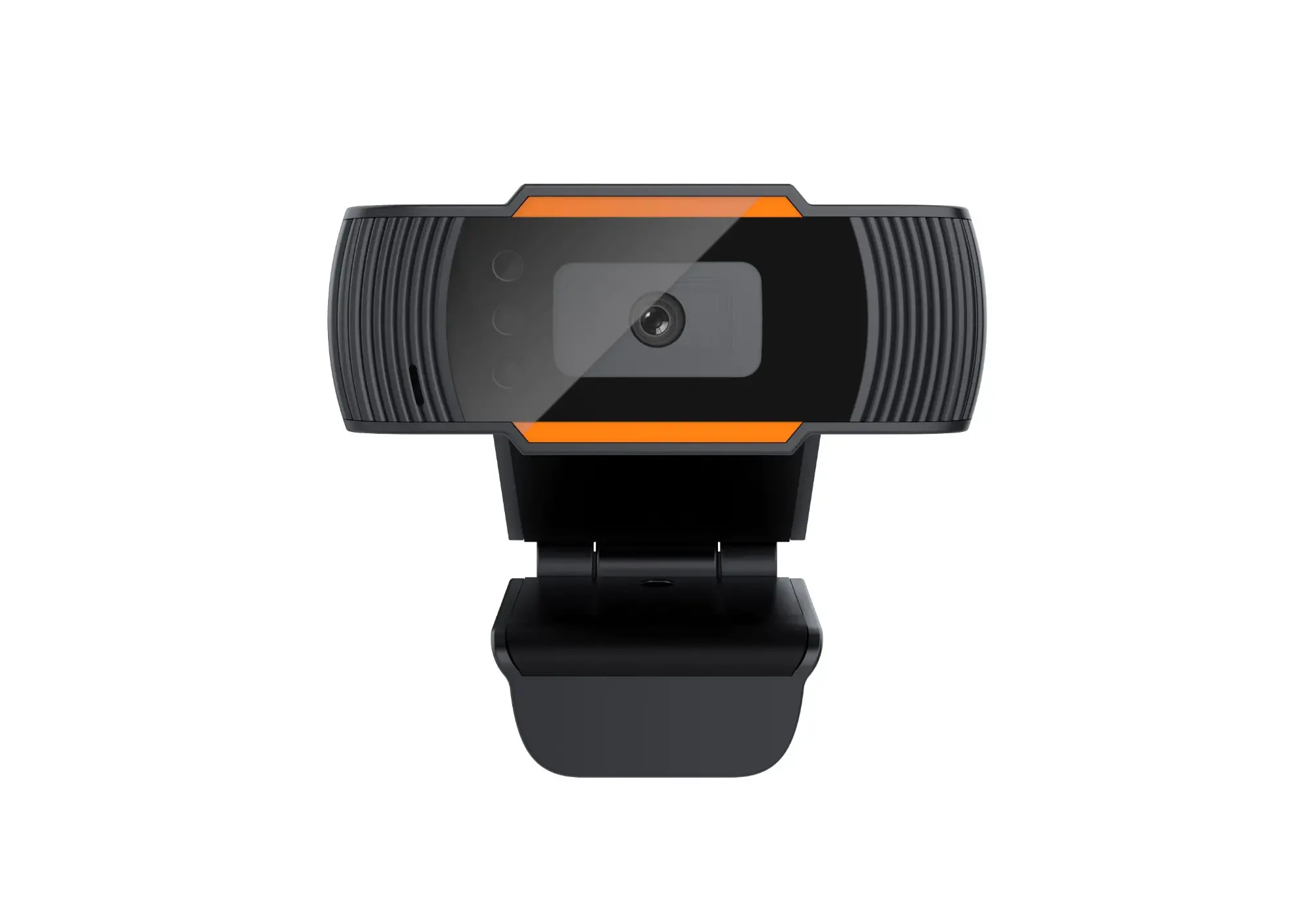

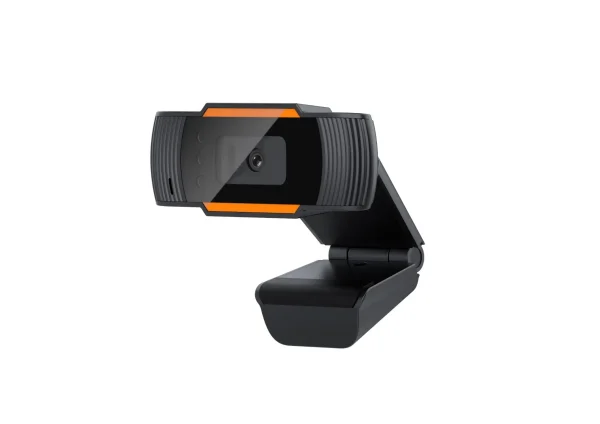

720P Webcam with noise canceling Microphone, fit for Netmeeting, teleconference, Skype, YouTube, Yahoo! Android IPTV, MSN, Zoom, Windows Live Messager, Gmail, WhatsApp and OEM, ODM customized.

ODM, OEM customizing for Webcam you want.
720P HD Webcam, fit for Netmeeting, Zoom meeting, Recording, Calling, Conferencing, Gaming.
USB PC Webcam with Microphone with excellent sound quality. AL noise reduction eliminates the appearance of low frequency noise.

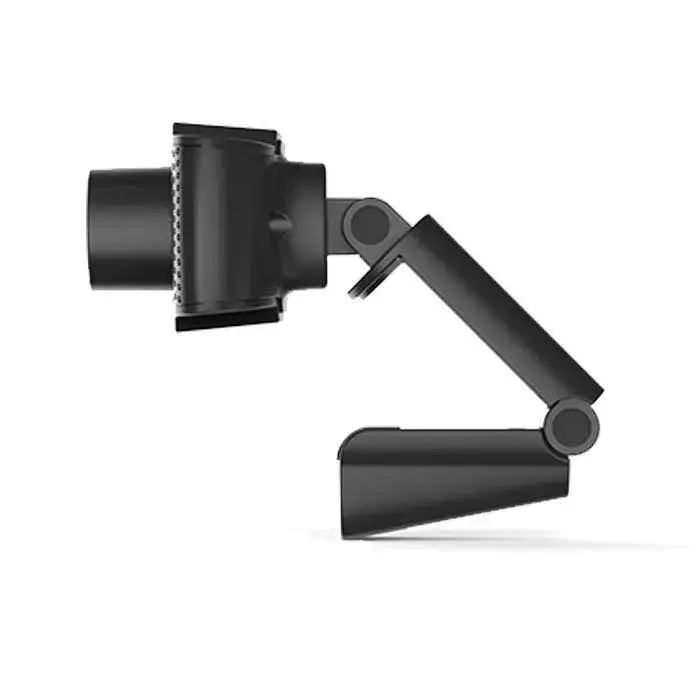

Easy to set up and can clip onto the monitor. Plug and play, no additional driver required.
Wide viewing angle of 110°, lens can also be customized.
Suitable for Windows7, Windows 10, Mac OS and Android etc.
Platform Compatibility: Skype, YouTube, Yahoo! Android IPTV, MSN, Zoom, Windows Live Messager, Gmail, WhatsApp and other instant messages.
Payment Terms: T/T
Delivery Time: 2-3weeks
Supply Ability: 500000 pieces/month

Share to:

Performance Parameter: (if you want customization, please download the table and fill in the parameter you want, password CKVISION)

Model

CK-WEBCAM720

REMARKS

Image Sensor

H63 from SOI



Image Sensor Size

1/4



Effective Pixels

1280*720



Pixel size

2.8μm x 2.8μm



Optical distortion

≤0.5%



Output format

YUV2



Video format

AVI



Maximum Frame Rates and Resolution

1280×720 @ 30fps

 640×480 @ 60 fps

YUV2

Mic

Noise canceling microphone



Dynamic range

TBD



Digital interface

USB2.0  OTG



Transfer rates

480MB/S



Power requirements

5V±5%



Storage temperature

-20℃to70℃



operating temperature

-10℃to60℃



Power Consumption

NO LED

Max 300mW



 LED IR-850

NO



OS

WinXP/Vista/Win7/Win8/Win10

Linux with UVC(above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC



Lens size

M8 diameter;10.5mm height



Lens Construction

4P+IR



F/NO

2.0



EFL

3.24mm



FOV

D:90°H:60°V:49° ±3°



Shooting distance

Manual zoom, 20cm-infinity
