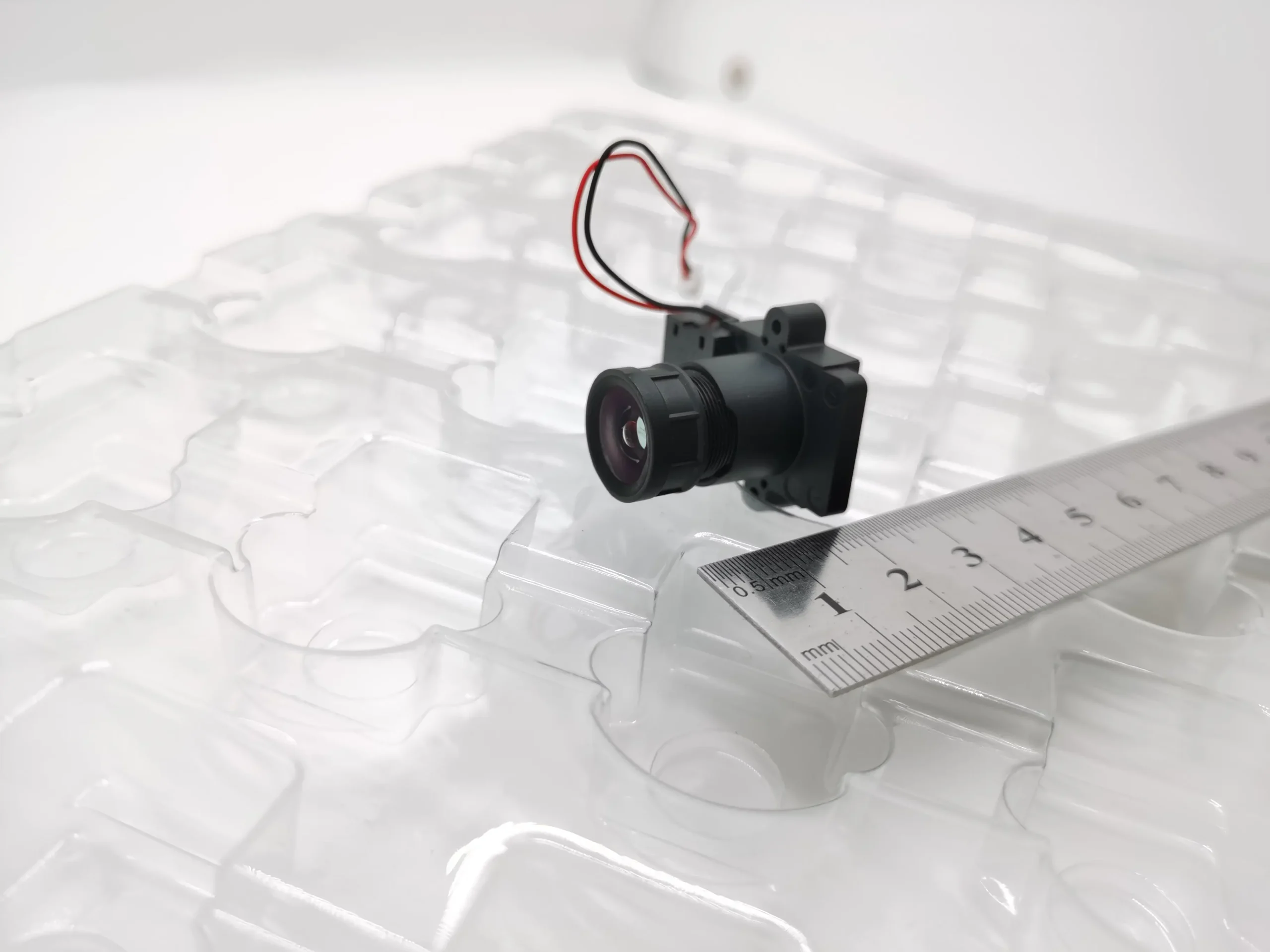

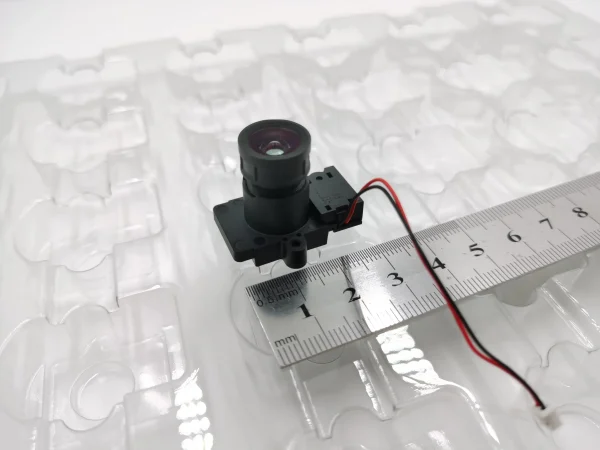

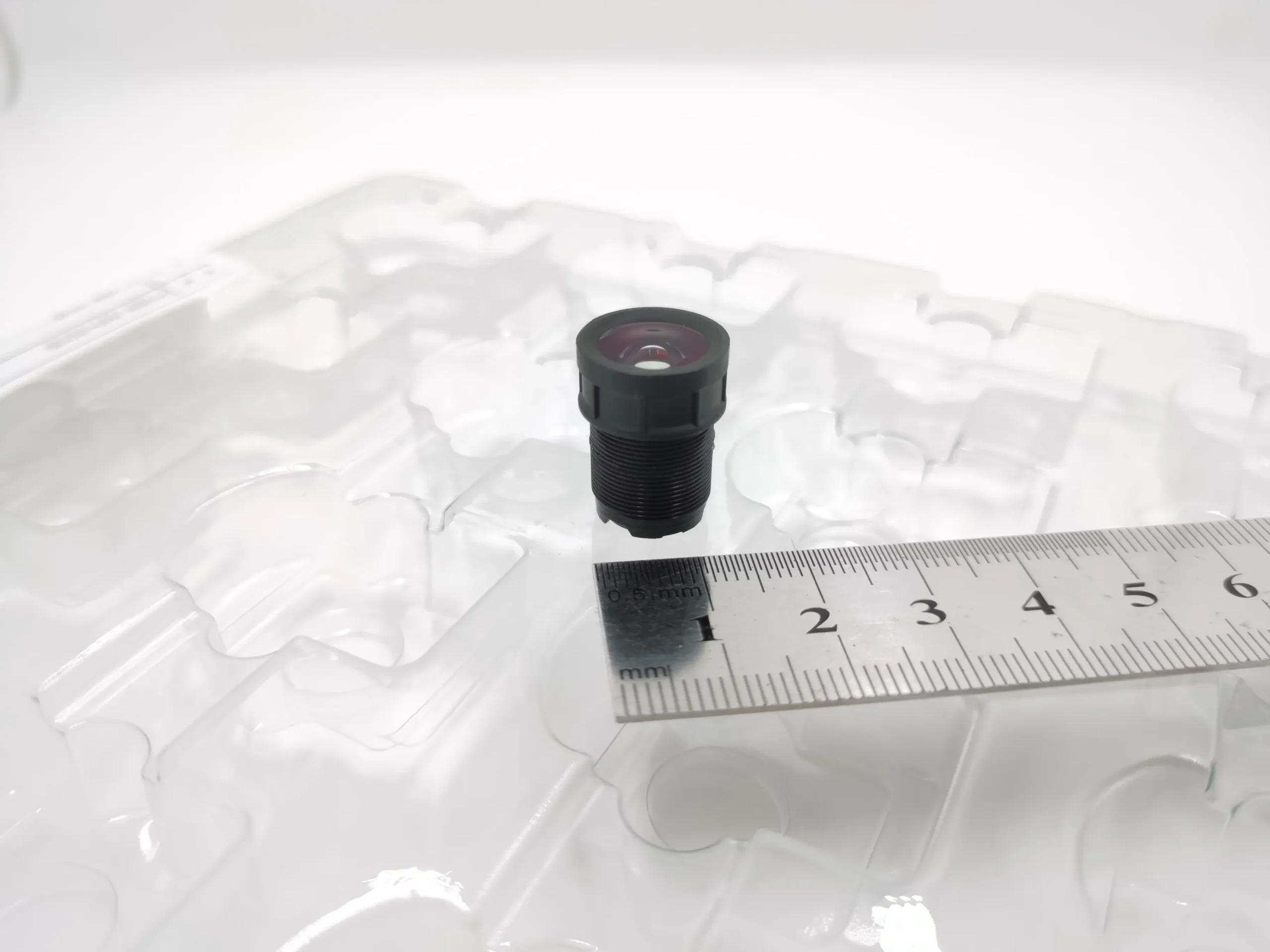

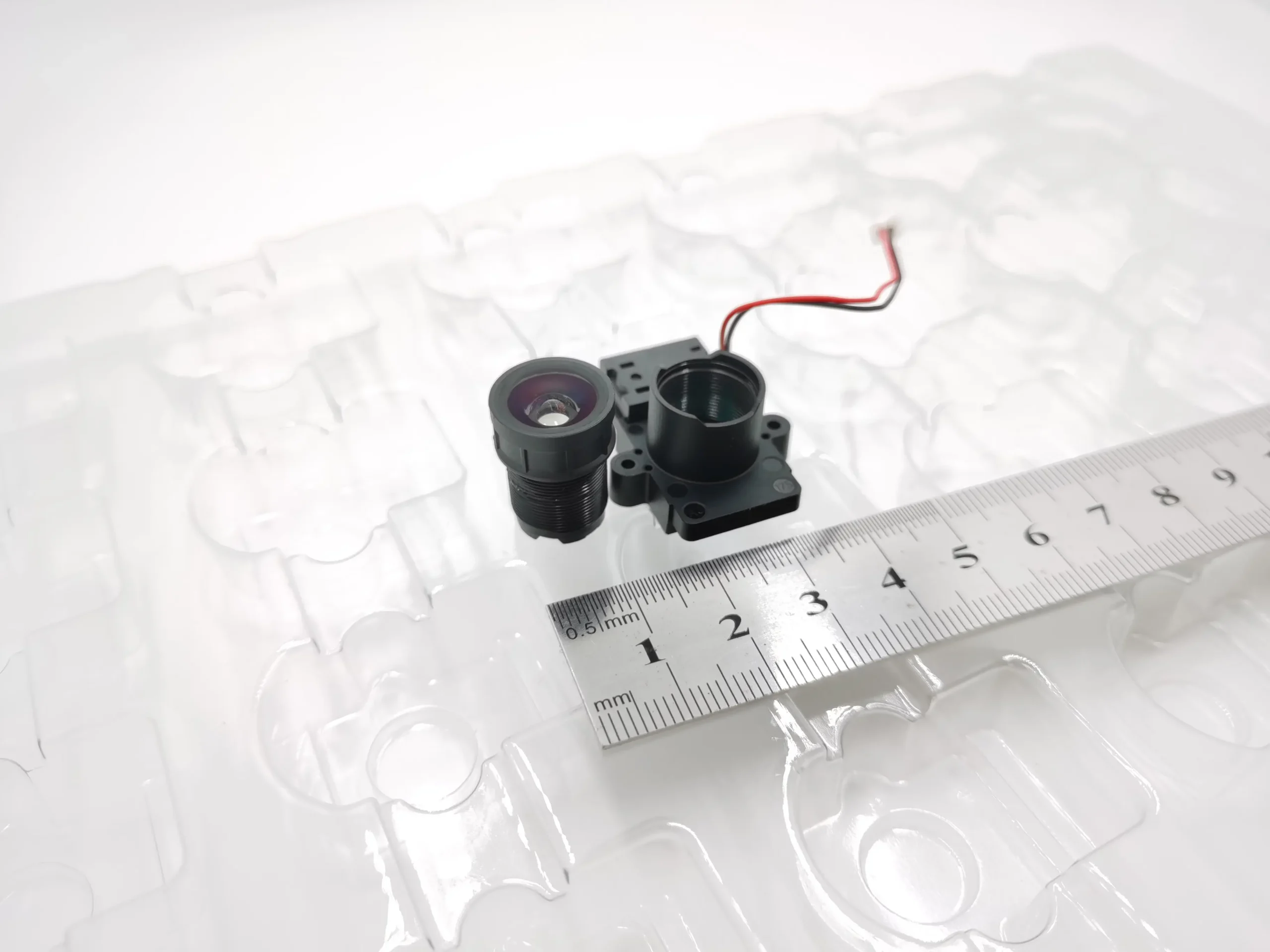

FN 1.0 low Lux Night vision Lens
Camera designers will love it when they are going to make a night vision camera, 4.0 focal length means it’s especially suitable for monitors, the FOV are around100 degrees, also is fit for smart access control system, 1080P resolution enough for most of intelligent monitoring system or baby care monitor, some of the customers will put this lens on ADAS & DMS system for better night vision performance, it can also be used in robot system which be worked in low light environment.
Share to:
Application:
- ADAS DMS
- ID card Document camera system
- Robot
- Meeting camera
- Monitor camera-IPC
|
NO. |
Items |
Specification |
||||||
|
1 |
F No. |
1.0±10% |
||||||
|
2 |
Focal-Length |
4.0 ±5% |
||||||
|
3 |
Optical Back Focal Length |
3.82±0.2 (in air) |
||||||
|
4 |
Mechanical Back Focal Length |
3.72±0.2 (in air) |
||||||
|
5 |
TTL |
22.34±0.2（in air） |
||||||
|
6 |
Image circle |
Φ6.8（MAX) |
||||||
|
7 |
Lens structure |
2G5P（The first optical lens is plastic lens, could only be wiped with alcohol 3 times） |
||||||
|
8 |
Mount |
M12*P0.5 |
||||||
|
9 |
Clamp Force |
60-600gf-cm |
||||||
|
10 |
FOV |
Sensor size |
H |
V |
D |
|||
|
1/2.7″(16:9) |
87.0° |
46.2° |
103.7° |
|||||
|
1/2.8″(16:9) |
83.5° |
44.6° |
99.1° |
|||||
|
1/2.9″(16:9) |
80.2° |
43.0° |
94.7° |
|||||
|
11 |
Optical Distortion |
1/2.7″ |
-36.8% |
1/2.8″ |
-33.8% |
1/2.9″ |
-31.0% |
|
|
12 |
Relative Illumination |
1/2.7″ |
42% |
1/2.8″ |
44% |
1/2.9″ |
46% |
|
|
13 |
CRA |
1/2.7″ |
10.5° |
1/2.8″ |
10.1° |
1/2.9″ |
9.7° |
|
|
14 |
M.O.D |
2m |
||||||
|
15 |
Resolution |
Resolution： 1920*1080 （2MP） |
||||||
|
16 |
Weight |
/ |
||||||
|
17 |
Operation |
Focus |
Manual |
|||||
|
Iris |
Fixed |
|||||||
|
18 |
Storage condition |
-30℃~+80℃；10-90%RH（No condensing) |
||||||
|
19 |
Operation condition |
-20℃~+60℃；10-90%RH（No condensing) |
||||||
|
20 |
HSF&Safety |
RoHS |
||||||

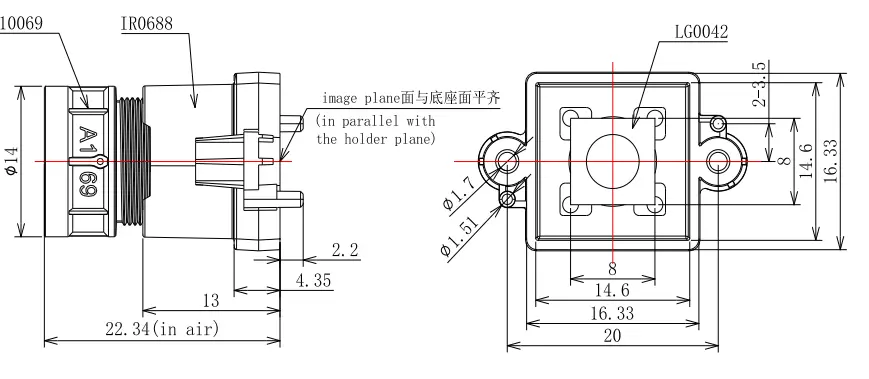

- Dimension Figure
-
Optical Performance
No.
Items
Description
1
Resolution
1.1： Condition
a: Chart: chart in the optical lab
b: Distance：1.2m
1.2：Method
Adjust the machine interface to get the most clear image plane center
1.3： Criteria
2MP:center:160lp/mm clear;∅4.5:125lp/mm clear；∅6:63lp/mm lines separate apart，1/2 smear
2
Appearance Standards
2.1 LENS DUST
A: Specification 60-40 Scratch：width<60um，total length<D/2, ≤15um ignored；
Smudge：Single dot diameter <200um,100~200um dot ≤3pcs
Other appearance
Outside surface uniform color; no visible flaws, stains, foreign bodies extended, obvious scratch or contraction; no glue spill into the effective aperture.
Reliability Test
No.
ITEM
CONDITION
1
Storage Test At High Temperature
All specification are to be satisfied after lens is exposed to 80℃ for 48 hours and then to normal
temperature/humidity for 6 hours
2
Storage Test At Low Temperature
All specification are to be satisfied after lens is exposed to -30℃ for 48 hours and then to normal temperature/humidity for 6 hours
3
Temperature Cycle Test
All specification are to be satisfied after lens is exposed to -30℃ for 30min, Tank temperature change +80℃ for 30min as one cycle, 10 cycle shall be performed. And then to normal temperature/humidity for 6 hours
4
Vibration Test
All specification are to be satisfied after lens is subjected to the sine wave of 1.5mm amplitude and 10-55Hz directions for 25 minutes each
