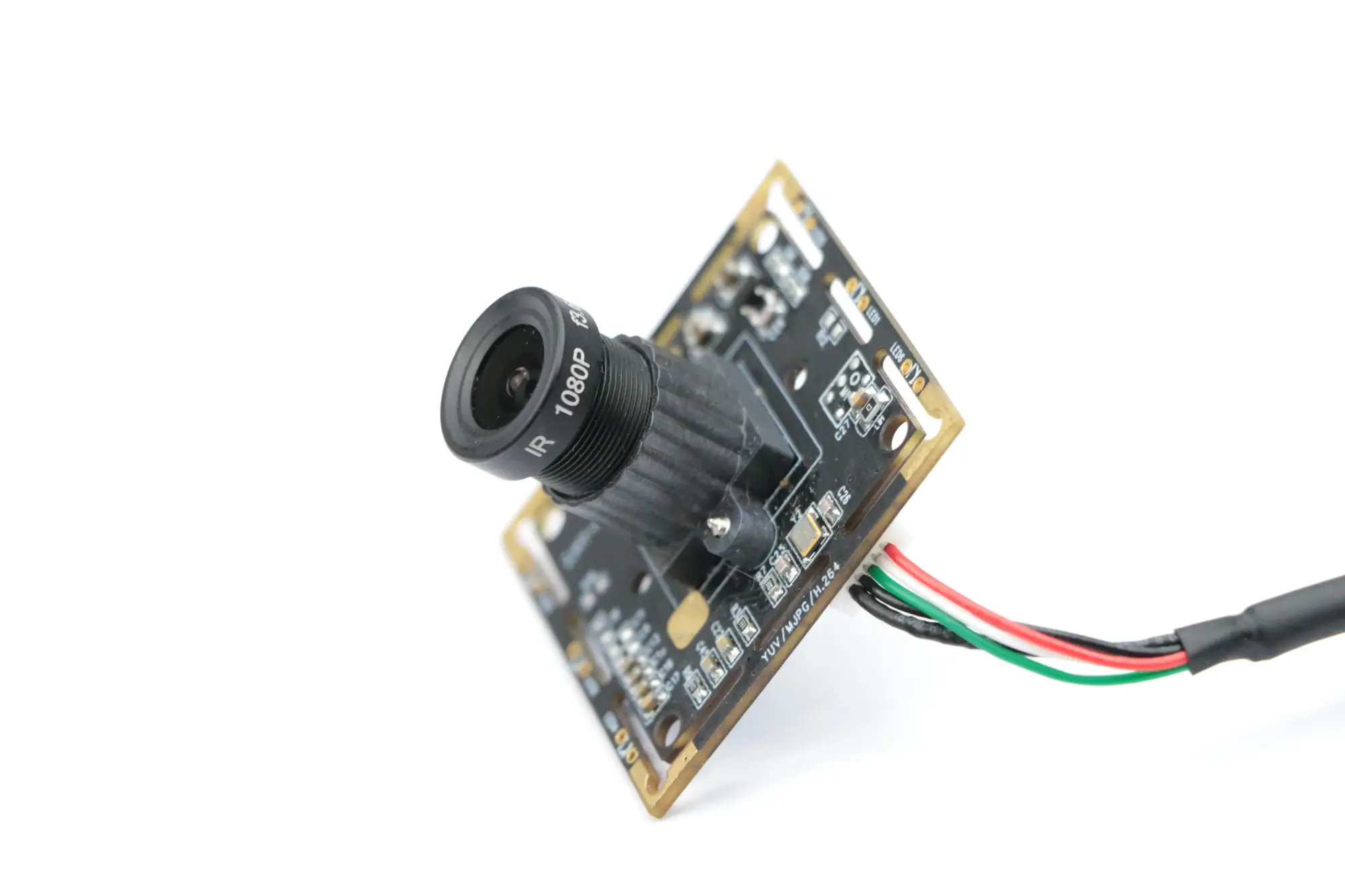

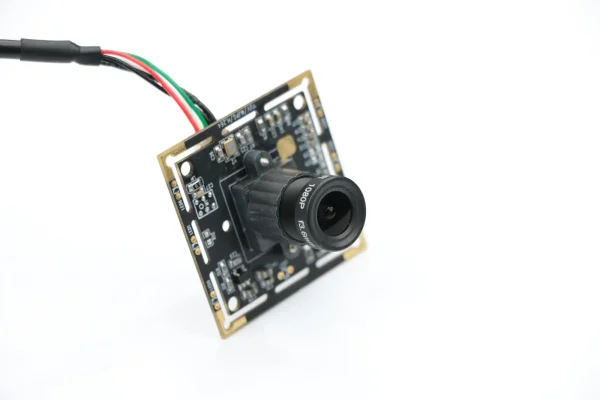

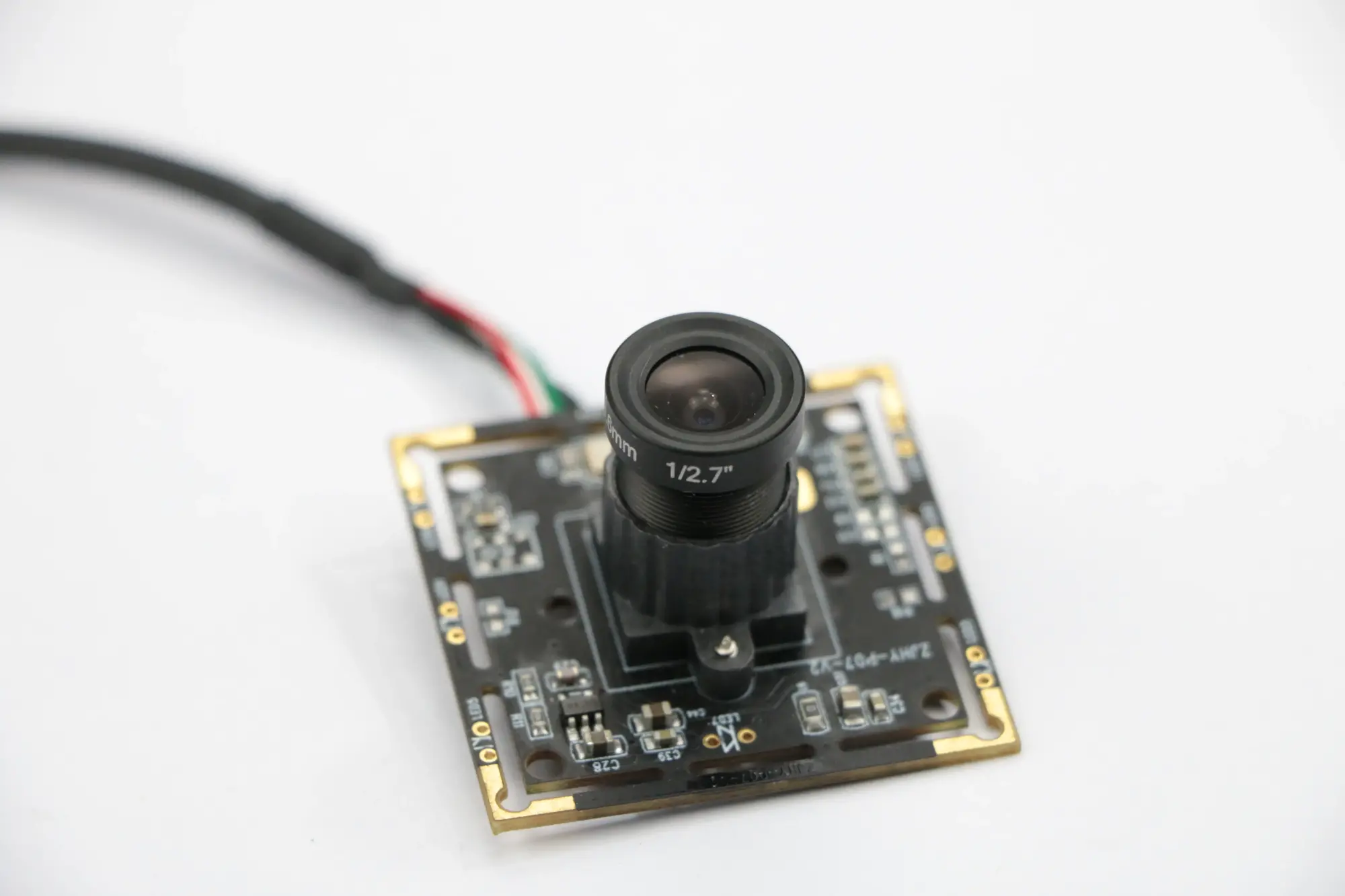

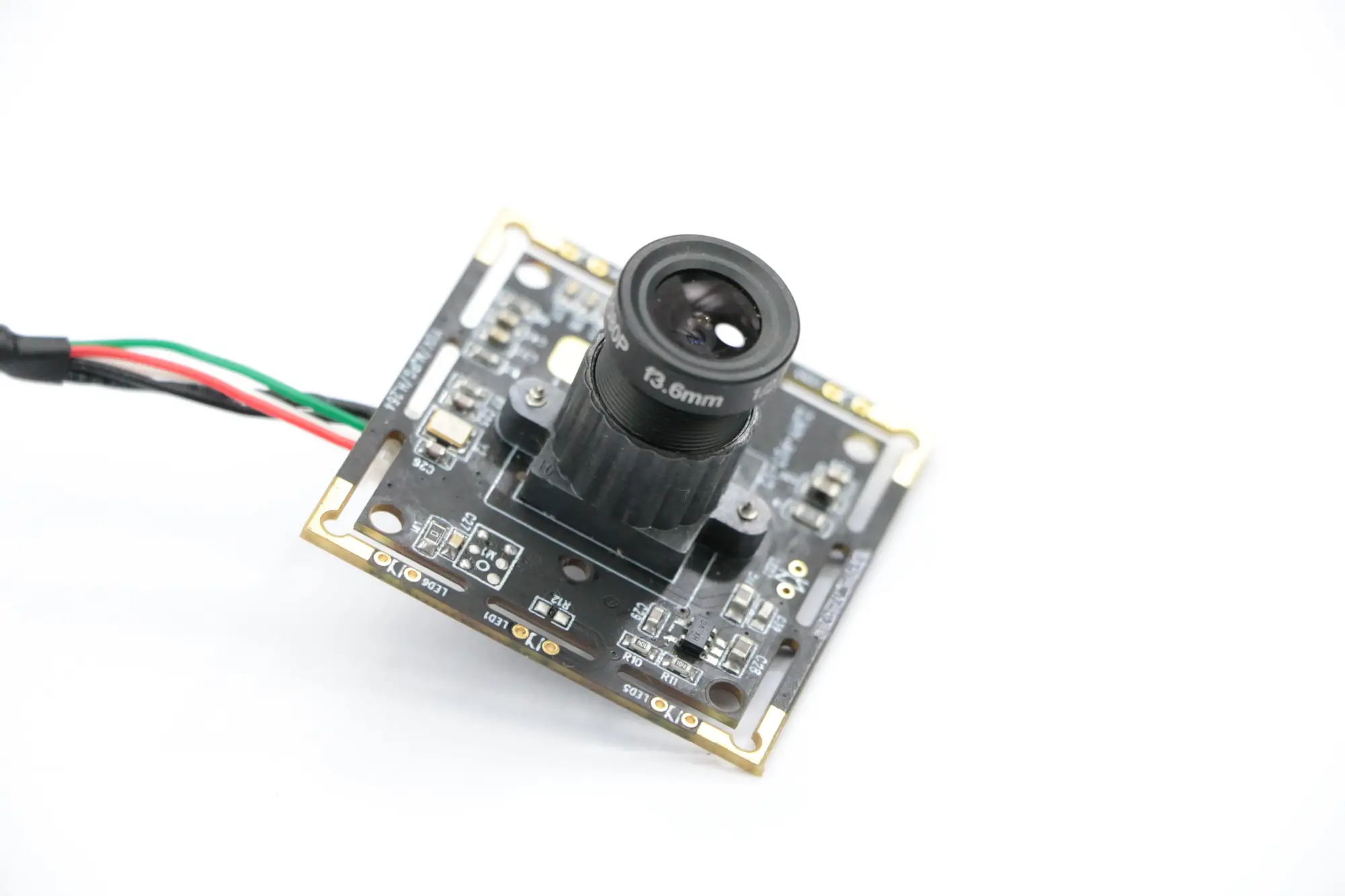

H264 camera module, Compatible with MJPG and YUV2, 1080P 1920×1080 2MP resolution
This is a H264 HD camera module with Superior low light & night vision.
Customization is supported
Using IMX307 CMOS sensor from Sony, 2MP (1920×1080) resolution.
Fixed Focus with view angle of 95 degrees (lens can be customized)
30FPS high frame rate at full resolution (1920×1080);
High sensitivity, Superior low light performance;
Payment Terms: T/T
Delivery Time: 2-3weeks
Supply Ability: 500000 pieces/month
Share to:
Performance Parameter: (if you want customization, please download the table and fill in the parameter you want, password CKVISION)
|
Module |
CK-H264-V2.1 |
REMARKS |
|
|
Image Sensor (感光原件型号) |
IMX307 |
|
|
|
Image Sensor Size（感光尺寸） |
1/2.8 |
|
|
|
Effective Pixels（有效像素） |
1920*1080 |
|
|
|
Pixel size（像素点尺寸） |
2.9umX2.9um |
|
|
|
Optical distortion(光学畸变) |
≤0.5% |
|
|
|
Image sensor Data output（数据输出类型） |
Raw Data 10bits |
|
|
|
Video output format（输出格式） |
MPJG / YUY2 / H264 |
|
|
|
Maximum Frame Rates and Resolution（分辨率和帧率） |
1920×1080 30fps 1280×720 30fps 800×600 30fps 640×480 30fps 320×240 30fps |
MJPG YUV2 H264 |
|
|
SNR max（信噪比） |
TBD |
|
|
|
Dynamic range（动态范围） |
TBD |
|
|
|
Min. Illumination（最低照度） |
≥0.01LUX at F1.2 |
NO LED |
|
|

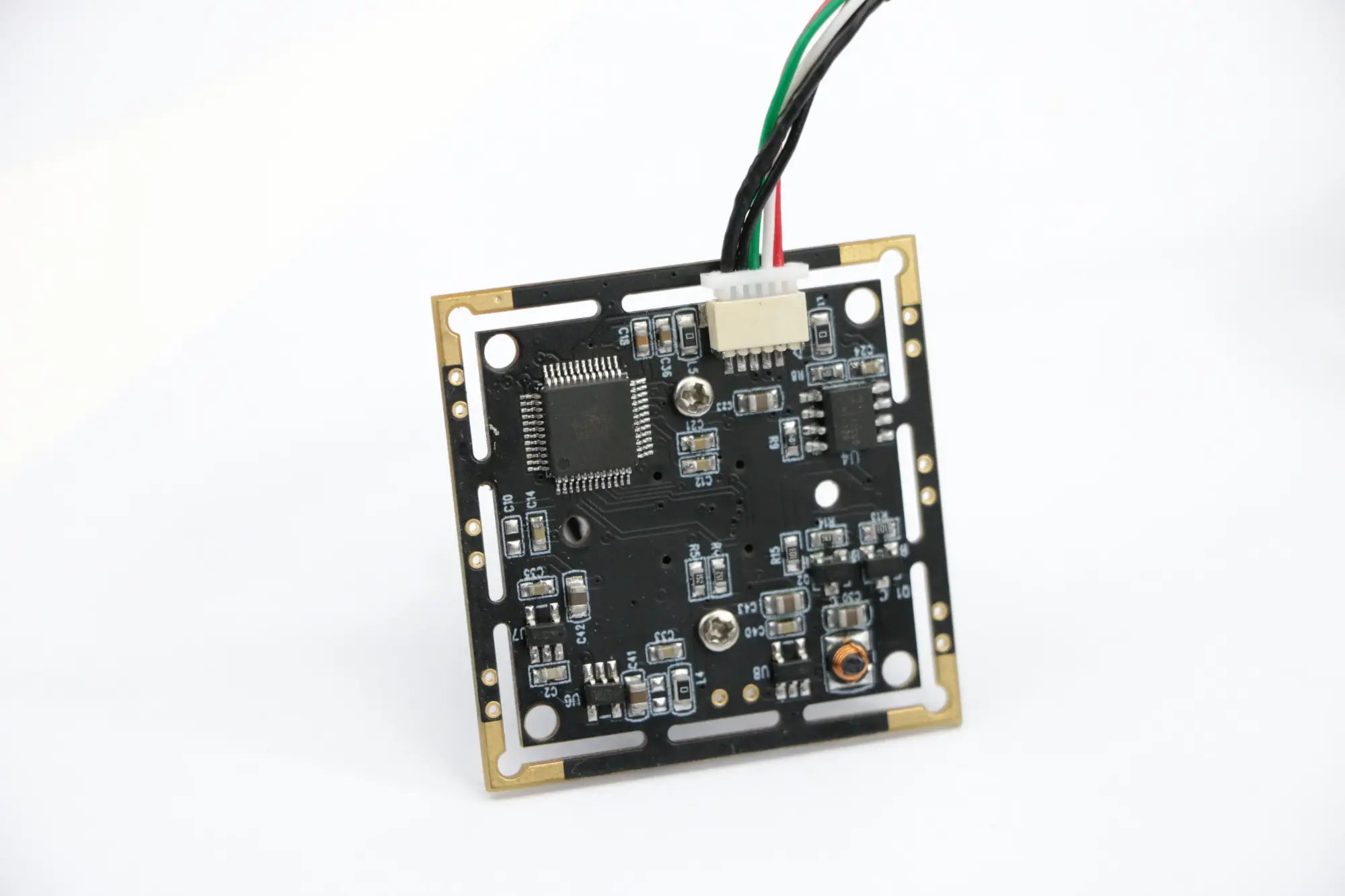

Digital interface（连接接口) |
5pin 1.25mm USB2.0 |
|
|
|
Transfer rates（接口速度） |
480MB/S |
|
|
|
Power requirements（电源） |
5V±5% |
|
|
|
Storage temperature储藏温度 |
-20℃to70℃ |
|
|
|
operating temperature 工作温度 |
-10℃to60℃ |
|
|
|
Power Consumption （功率） |
NO LED |
Max 500mW |
|
|
IR-LED |
|
|
|
|
LED IR-850(红外灯光强) |
NO |
LED |
|
|
OS（支持系统） |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|

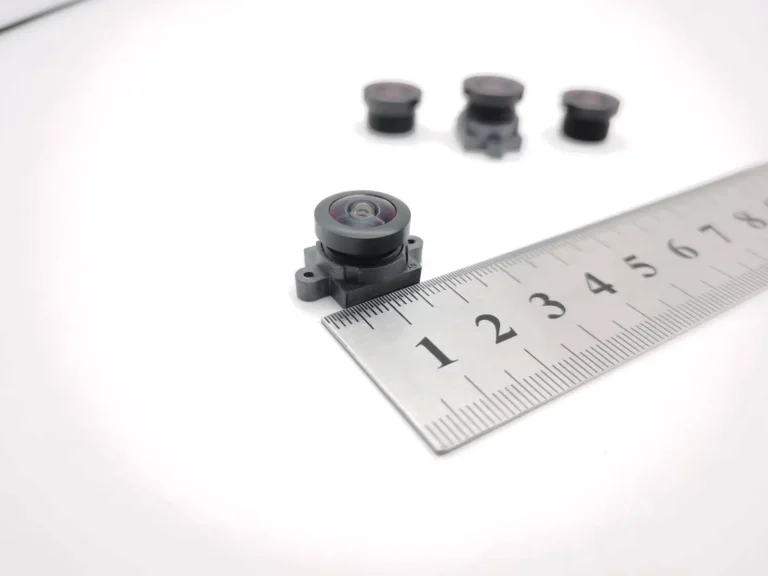

Lens view （默认镜头） |
M12 |
LENS |
|
|
Lens Construction （镜头结构） |
6G+IR |
|
|
|
F/NO（光圈） |
2.1 |
|
|
|
EFL （有效焦距） |
3.24mm |
|
|
|
FOV （角度） |
D:40°±3° |
|
|
|
Shooting distance（模组拍摄距离） |
Manual Focus 30cm-infinity |
||
