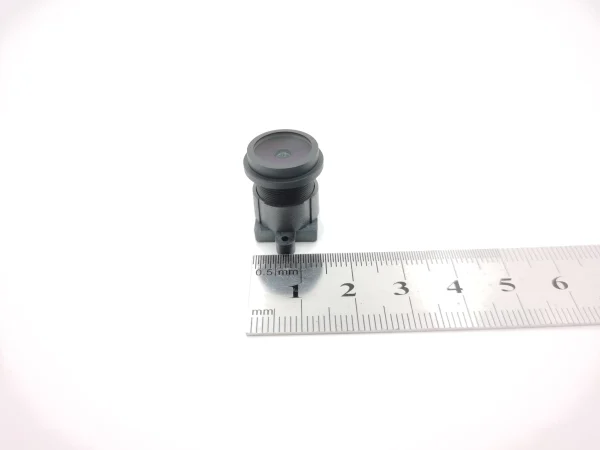

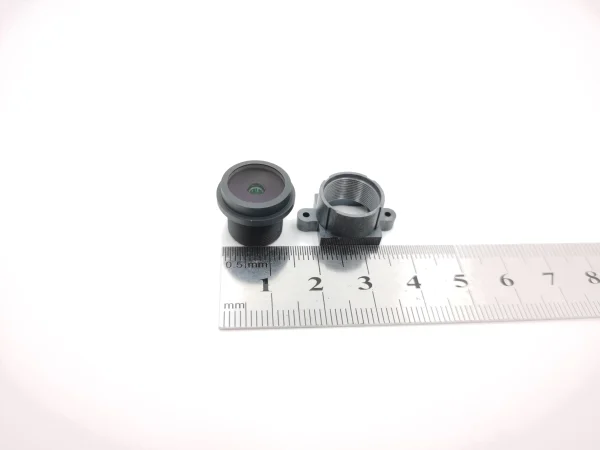

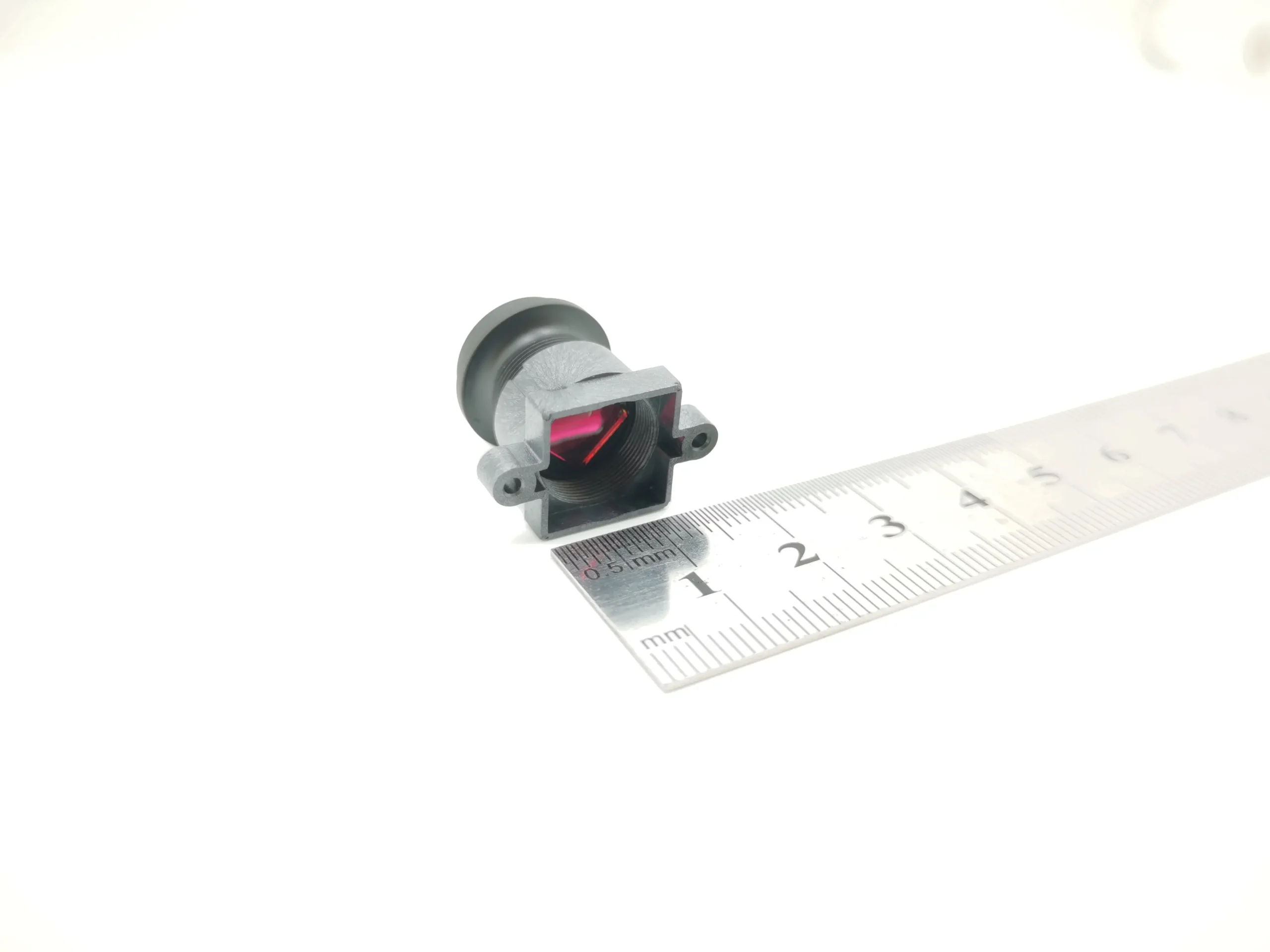

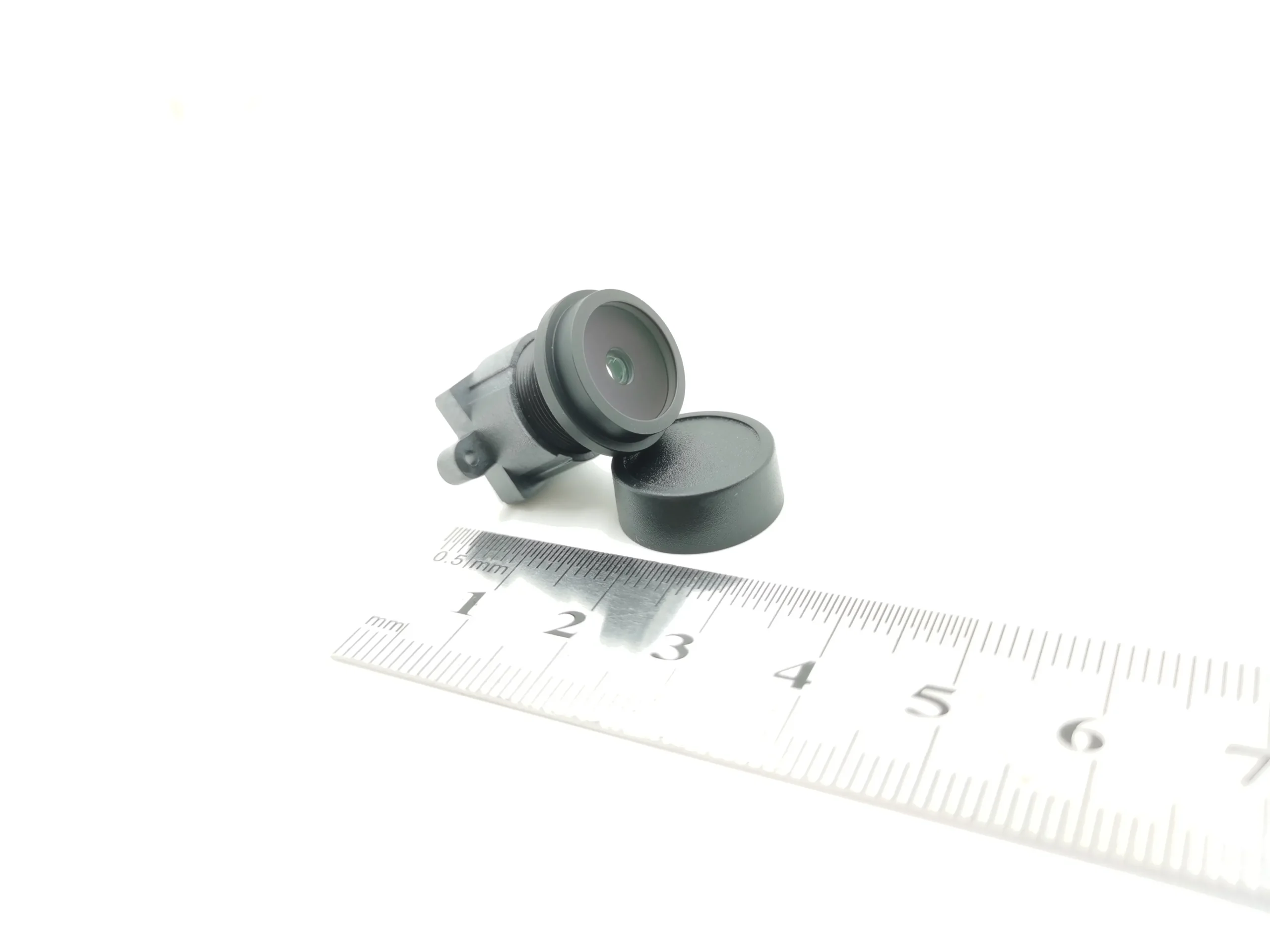

Lens of IP69 dustproof and waterproof
This is a lens we designed for automotive camera, IP69 dustproof and waterproof level making it perfect for the automotive camera, this lens has the FOV of 74°if assembling with 1/2.7 sensor, and FOV of 66°if assembling with 1/2.9 sensor, 74°and 66°FOV is the best choice for automotive electronic rearview mirror, and this lens has been mass product in most customer will using imx307 or imx462 or OV7725 which is also automotive level sensor, with OV7725 and the CK-9064 lens they can pass AEC-Q100 easily. With focal length of 5.5mm and 6 lenses of glass, it’s also the best choice for automotive camera, helping customers to get highest definition. TTL 16.6mm which means it can making a small size automotive camera, it is convenient for customers to do structural design.
Share to:
|
NO. |
Items |
Specification |
||||||
|
1 |
F No. |
2.0±10% |
||||||
|
2 |
Focal-Length |
5.5 ±5% |
||||||
|
3 |
Optical Back Focal Length |
6.53±0.2 (in air) |
||||||
|
4 |
Mechanical Back Focal Length |
4.72±0.2 (in air) |
||||||
|
5 |
TTL |
16.6±0.2（in air） |
||||||
|
6 |
Image circle |
Φ6.8（MAX) |
||||||
|
7 |
Lens structure |
6G |
||||||
|
8 |
Mount |
M12*P0.5 |
||||||
|
9 |
Clamp Force |
60-600gf-cm |
||||||
|
10 |
FOV |
Sensor size |
H |
V |
D |
|||
|
1/2.7″(16:9) |
61° |
34° |
74° |
|||||
|
1/2.9″(16:9) |
57° |
31° |
66° |
|||||
|
1/3″(16:9) |
53° |
29° |
61° |
|||||
|
11 |
Optical Distortion |
1/2.7″ |
8% |
1/2.9″ |
7% |
1/3″ |
6% |
|
|
12 |
Relative Illumination |
1/2.7″ |
42% |
1/2.9″ |
44% |
1/3″ |
46% |
|
|
13 |
CRA |
1/2.7″ |
10.5° |
1/2.9″ |
10.1° |
1/3″ |
9.7° |
|
|
14 |
M.O.D |
2m |
||||||
|
15 |
Resolution |
Resolution： 1920*1080 （2MP） |
||||||
|
16 |
Weight |
/ |
||||||
|
17 |
Operation |
Focus |
Manual |
|||||
|
Iris |
Fixed |
|||||||
|
18 |
Storage condition |
-50℃~+110℃；10-90%RH（No condensing) |
||||||
|
19 |
Operation condition |
-40℃~+105℃；10-90%RH（No condensing) |
||||||
|
20 |
HSF&Safety |
RoHS |
||||||
