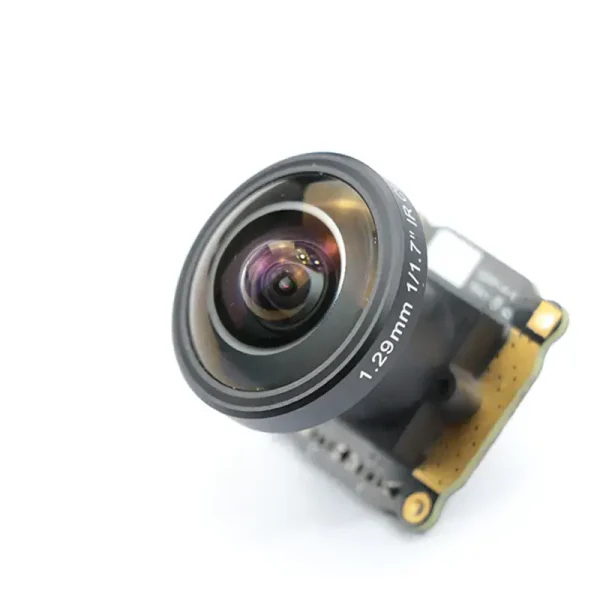

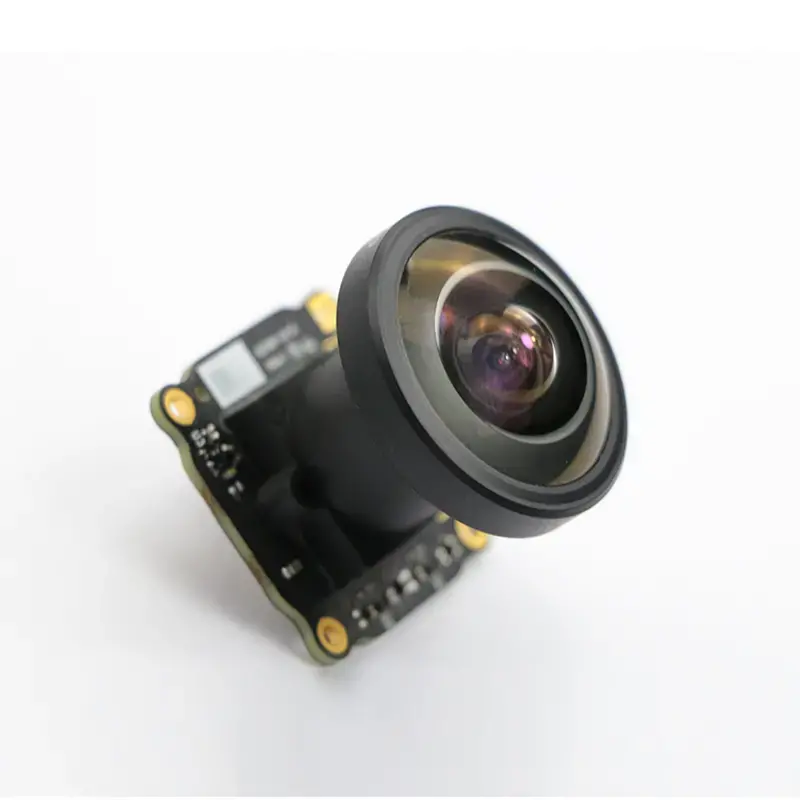

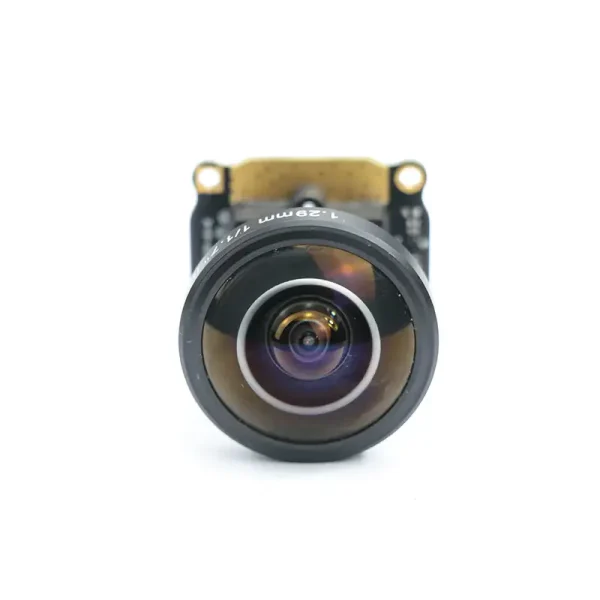

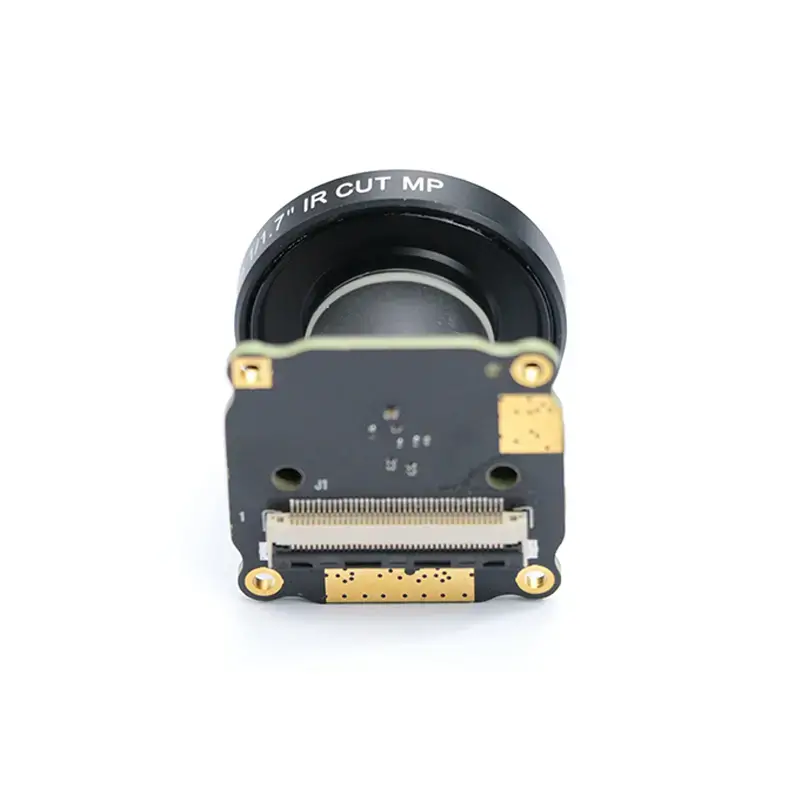

1080P night vision camera module, with imx291 Sony sensor, MIPI interface, STARVIS technology-CK vision
This is a 1080P MIPI camera module with exceptional night vision quality.
Using CMOS sensor IMX291 from SONY, 2M (1920×1080) resolution.
Fixed Focus with view angle of 105 degrees (lens can be customized)
30FPS high frame rate at full resolution (1920×1080);
High sensitivity, superior low-light performance;
Support most platforms: Linux, Android, FPGA
Customization is supported
Payment Terms: T/T
Delivery Time: 2-3weeks
Supply Ability: 500000 pieces/month
Share to:
This 1080P camera module is widely used in high-demanding and high-tech applications:
Teleconferencing system, video meeting, artificial intelligence (AI), robotics, Internet of things (IoT)
machine vision, industrial automation, computer vision, Tachograph, ADAS(Advanced Driving Assistance System), carcorder, DMS(Driver monitor system)camera, surveillance, educational equipment, medical imaging, agro-technological camera, embedded devices,traffic monitoring system, etc.
Performance Parameter: (if you want customization, please download the table and fill in the parameter you want, password CKVISION)
|
Module |
CK-291-V3.0 |
REMARKS |
|
|
Image Sensor |
IMX291 |
|
|
|
Image Sensor Size |
1/2.8 |
|
|
|
Effective Pixels |
1920*1080 |
|
|
|
Pixel size |
2.9umX2.9um |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output format |
MIPI |
|
|
|
Maximum Frame Rates and Resolution |
120fps @ full size with MCLK of 74.25MHz |
|
|
|
SNR max |
40dB |
|
|
|
Dynamic range |
81dB |
|
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
NO LED |
|
|
Digital interface |
Mipi |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
AVDD 2.9 IOVDD1.8 DVDD1.2 |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 300mW |
|
|
IR-LED |
|
|
|
|
LED IR-850 |
NO |
LED |
|
|
OS |
Android, linux |
|
|
|
Lens view |
M12 |
LENS |
|
|
Lens Construction |
6G+IR |
|
|
|
F/NO |
2.1 |
|
|
|
EFL |
3.24mm |
|
|
|
FOV |
D:120°±3° |
|
|
|
Shooting distance |
Fixed Focus 30cm-infinity |
|
|
