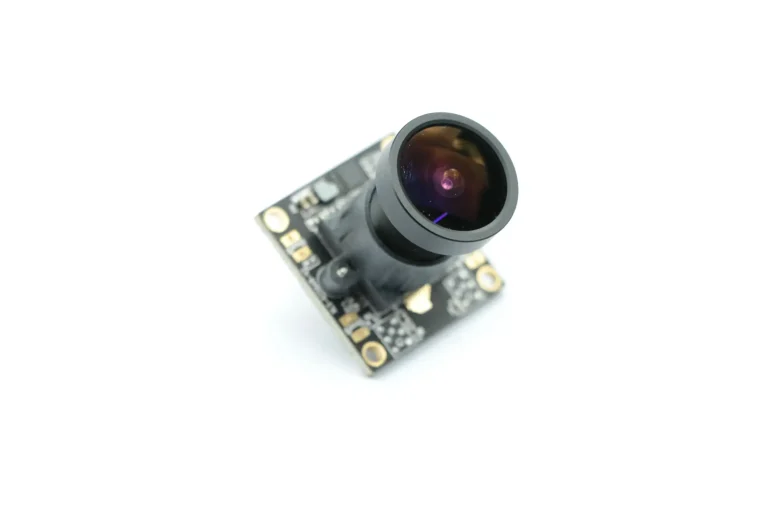

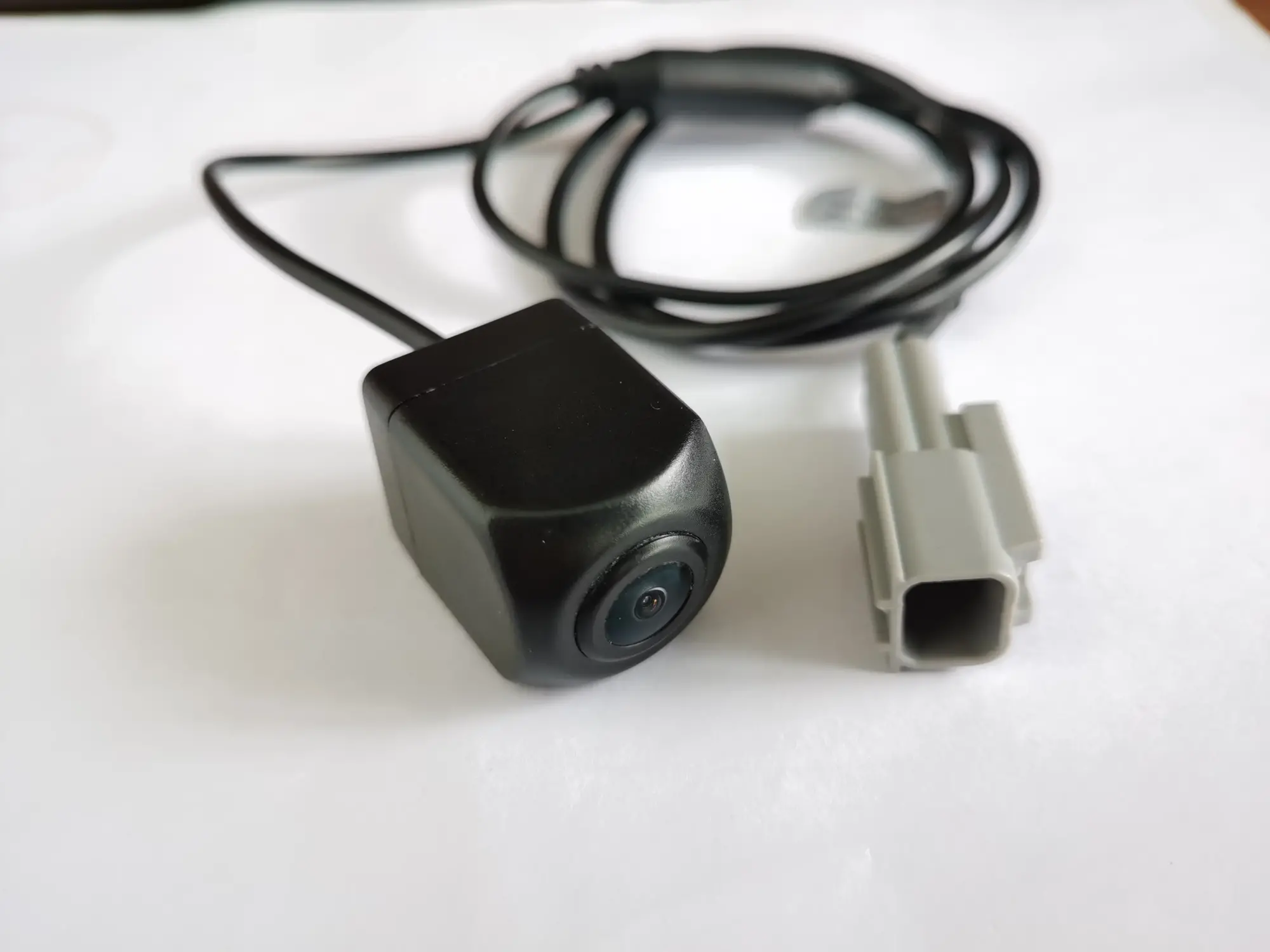

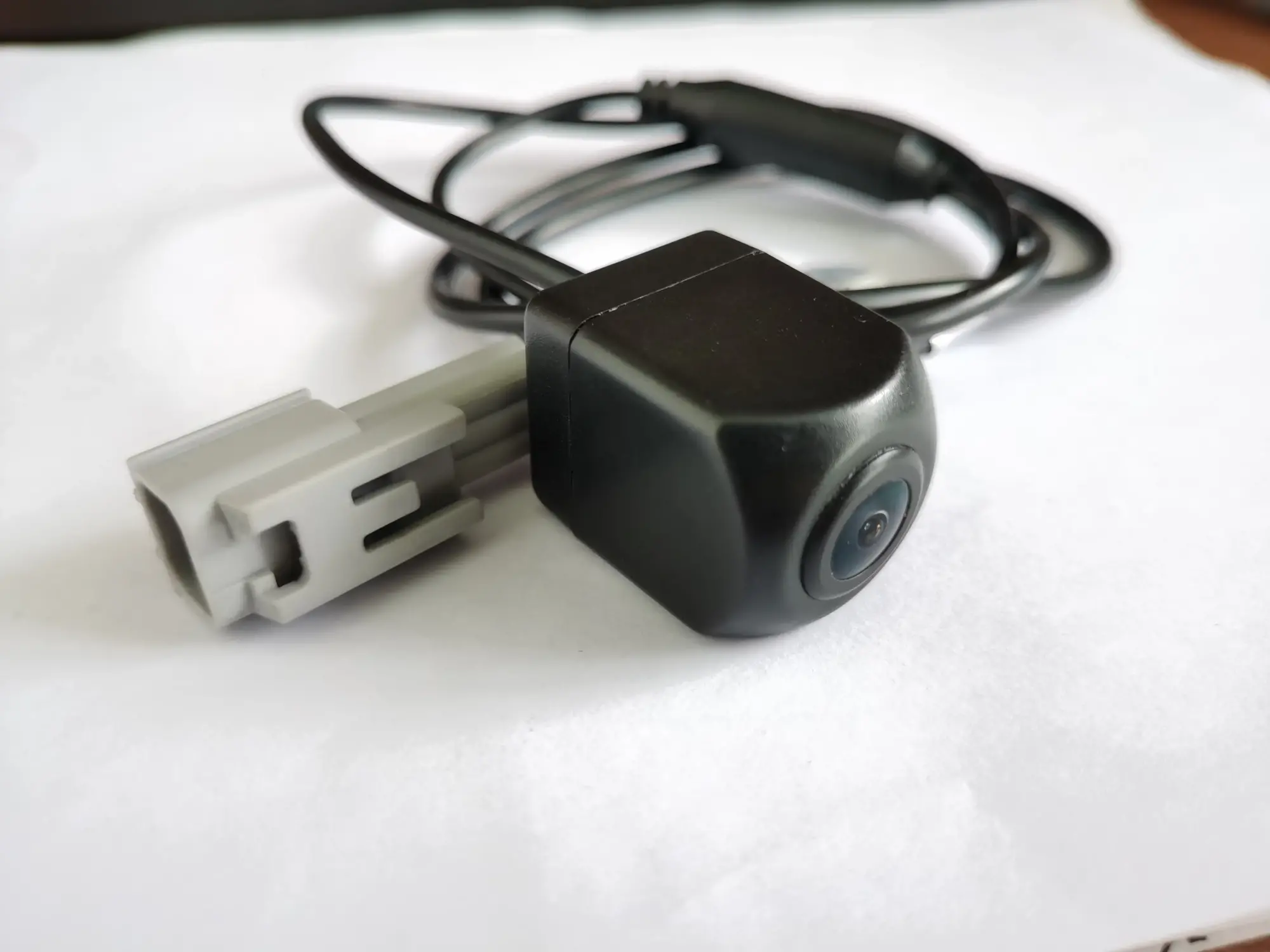

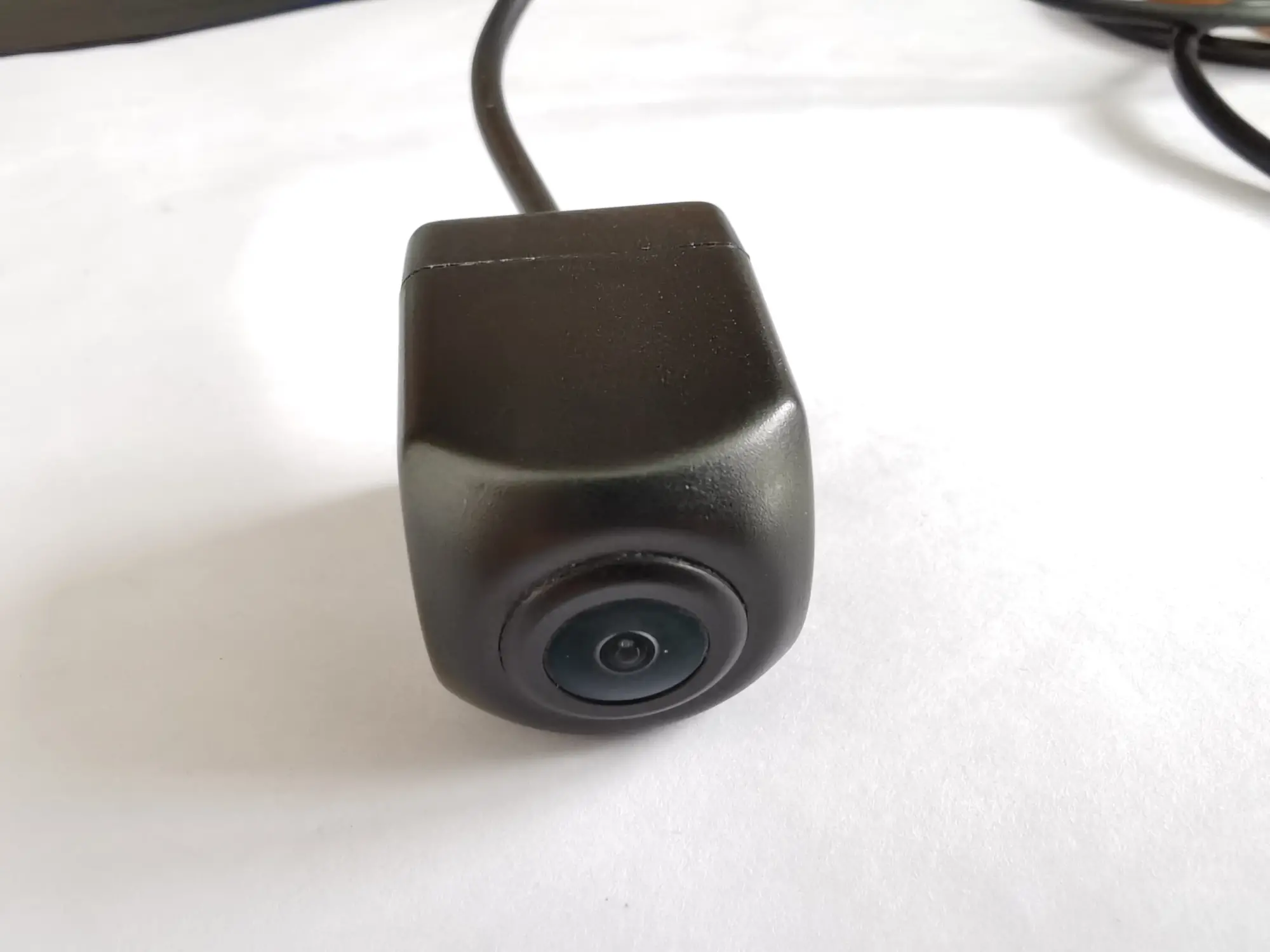

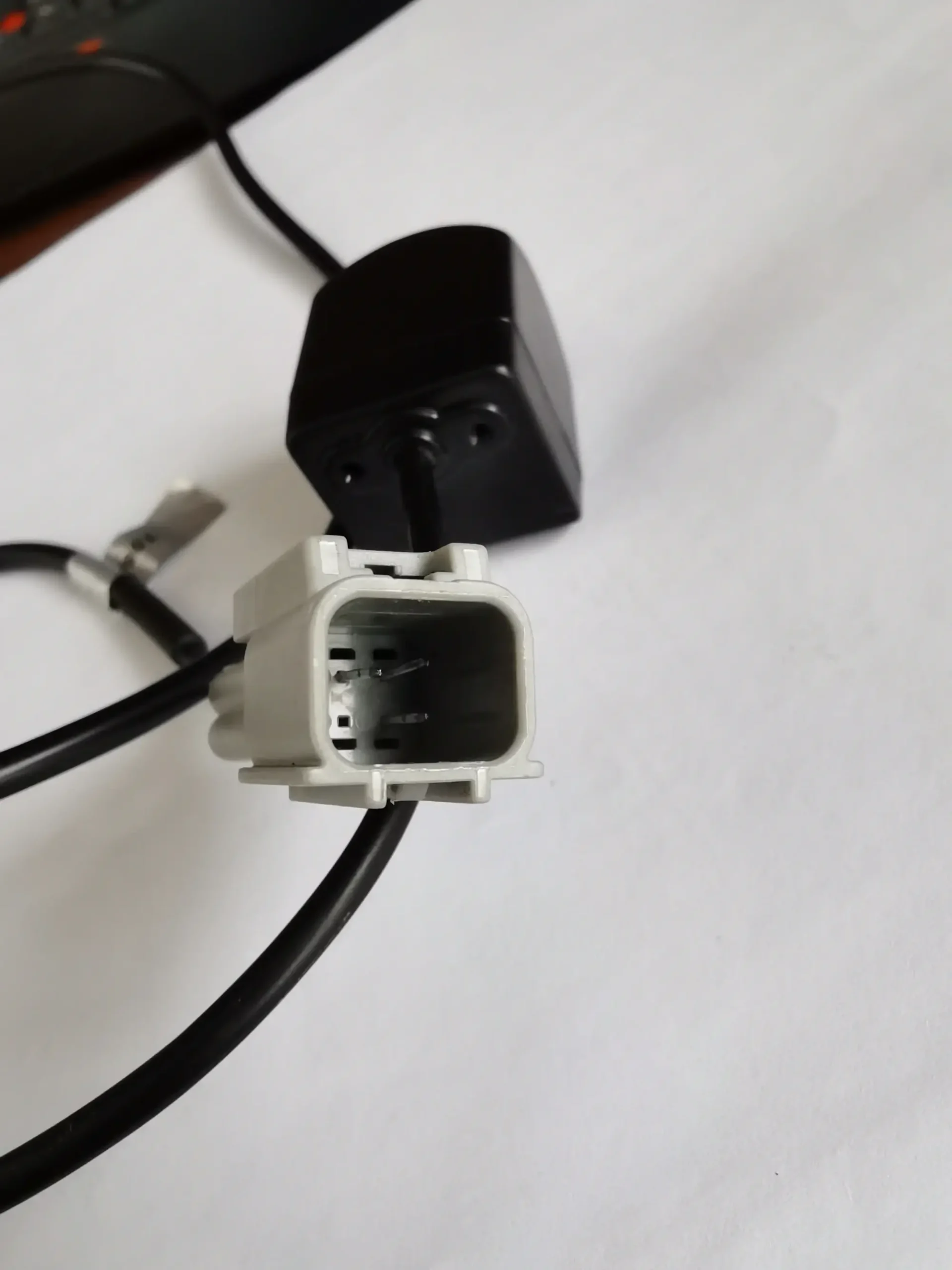

1080P Rear view camera, night vision AHD backup camera
AHD backup camera with 1/2.9’’ FHD CMOS Image Sensor.
Made for Toyota India.
140 degrees wide FOV (field of view), the lens can be customized.
Power supply voltage: 12V
30fps at full resolution of 1920×1080.
ODM, OEM customization.
Payment Terms: T/T
Delivery Time: 2-3weeks
Supply Ability: 200000 pieces/month
Share to:
Performance Parameter: (if you want customization, please download the table and fill in the parameter you want, password CKVISION)
|
Module No. |
CK-1080AHD |
|
|
Temperature (Operation) |
-20°C to 60°C |
|
|
Object distance |
80CM-infinity |
|
|
PCB printing ink |
black |
|
|
Power supply voltage |
12V |
|
|
Interface |
AHD |
|
|
Operating system request |
All platform |
|
|
Sensor Type |
|
|
|
Array Size |
1/2.9 1920 x 1080 |
|
|
Sensitivity |
3.87 V/(Lux·sec) |
|
|
Pixel Size |
2.8µm x 2.8µm |
|
|
Maximum Image Transfer Rate |
Max 30fps |
|
|
Lens Type |
|
|
|
Lens Construction |
5G |
|
|
F/No |
2.0 |
|
|
EFL |
2.5mm |
|
|
FOV |
|
D=140° H=120° V=85° |
|
TV Distortion |
<15% |
|
|
IR Filter |
650±10nm |
|
|
DSP Type |
|
|
|
AGC/AEC/Whiter balance |
Auto |
|
|
Support the compression formats |
AHD |
|
|
Fixed Pattern Noise |
< 0.03% of VPEAK-TO-PEAK |
|
