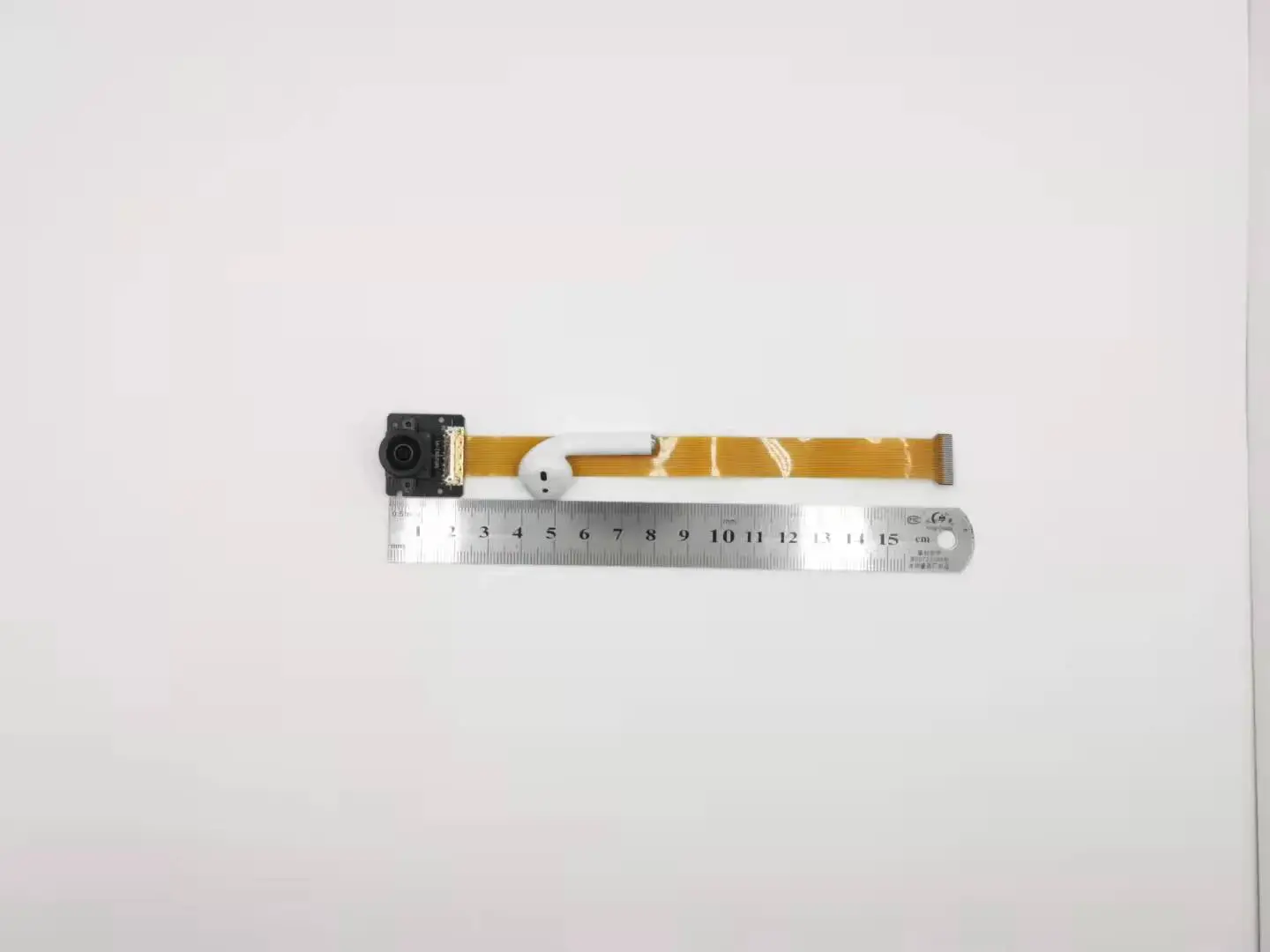

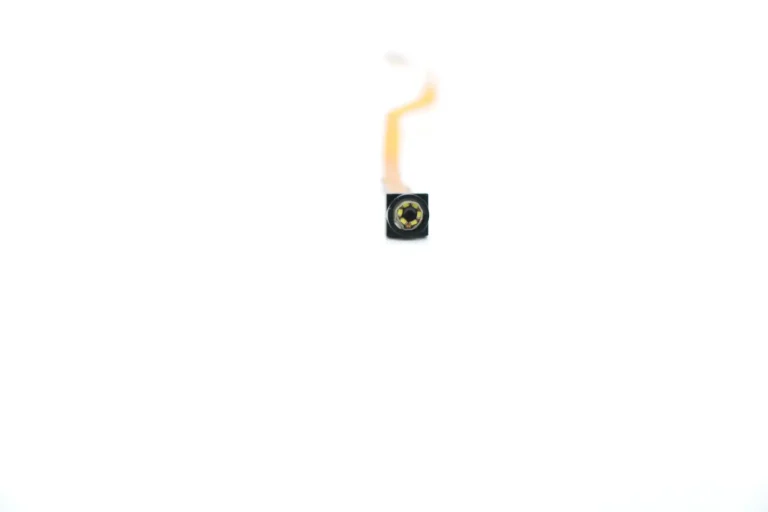

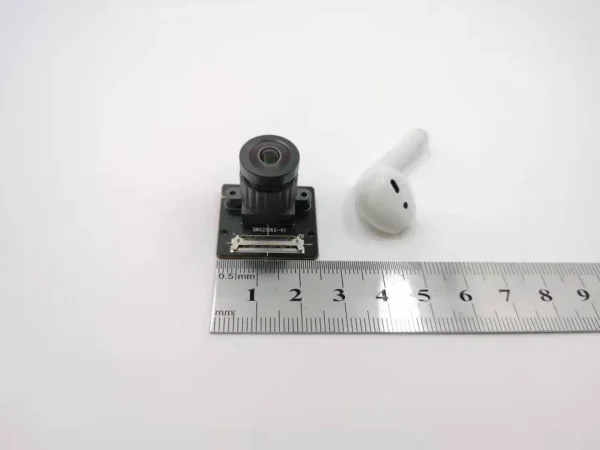

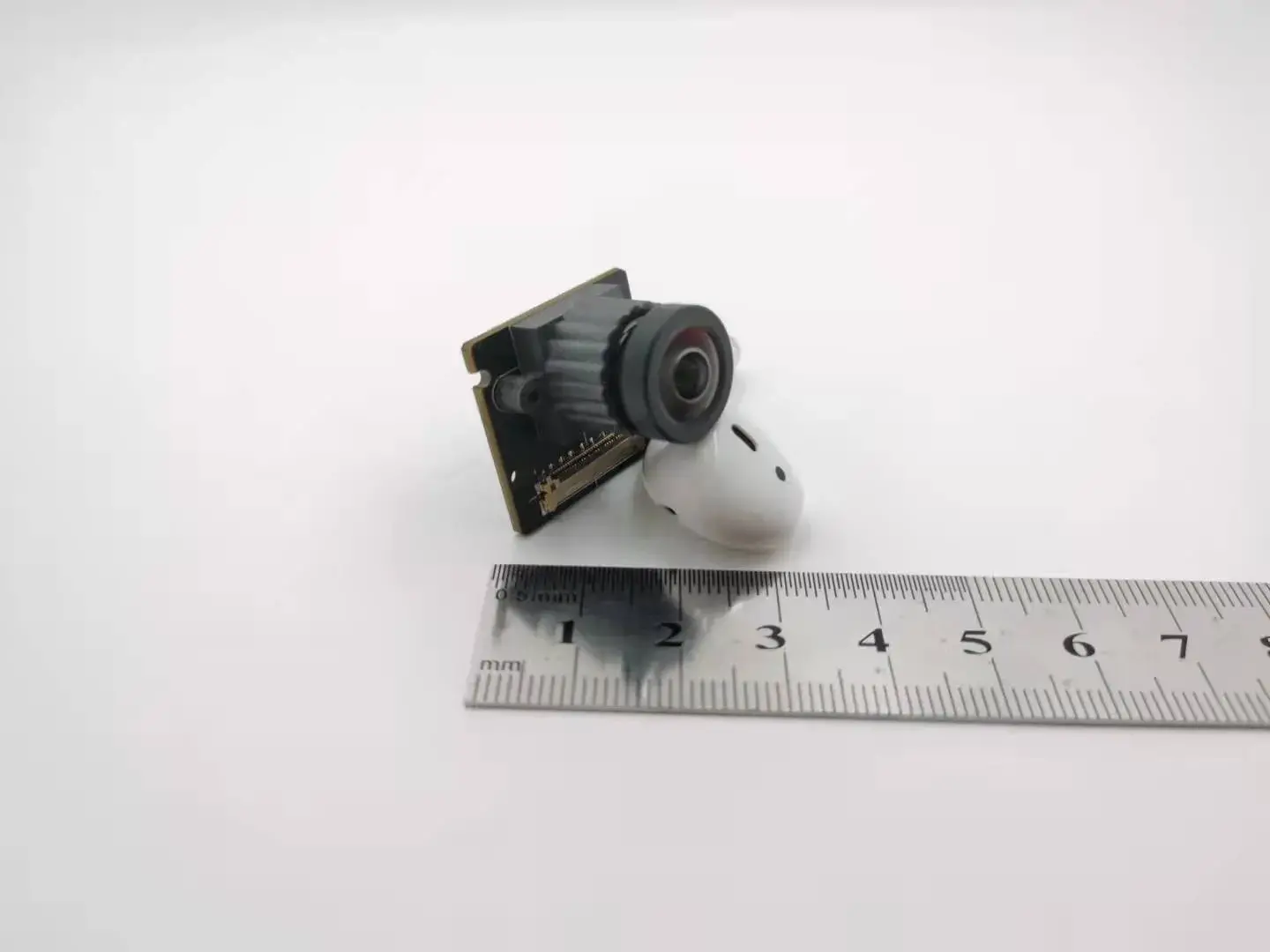

-40 to 105 ℃ 1080p MIPI CSI automotive camera module
Automotive Grade 2 camera;
Keep dust, water, and mud from sticking to the lens;
30fps @ 1080P HD resolution with high dynamic range;
high sensitivity and low power consumption;
external frame synchronization capability;
OV2775 Automotive Grade sensor inside;
Fit for:
360° surround view system;
blind spot detection;
pedestrian detection;
traffic sign recognition;
camera monitoring system;
Autonomous driving, DMS, ADAS.
Share to:
Performance Parameter: (if you want customization, please download the table and fill in the parameter you want, password CKVISION)
|
Module |
CK-AG2-2775-V1 |
REMARKS |
|
|
Image Sensor |
OV2775 |
|
|
|
Image Sensor Size |
1/10 |
|
|
|
Effective Pixels |
1920X1080 |
|
|
|
Pixel size |
2.8umX2.8um |
|
|
|
Optical distortion |
≤0.1% |
|
|
|
Image sensor Data output format |
Linear 12 bit RAW; 10 bit compressed RAW; single exposure HDR 16 bit combined RAW; 12 bit compressed combined RAW; dual exposure HDR 16 bit combined RAW +12 bit VS RAW; 12 bit compressed combined RAW + 12-bit VS RAW; 3×12 bit RAW; 3×10 bit combined RAW; 12 bit (10 bit) RAW (HCG or LCG) + 12 bit (10 bit) VS; |
|
|
|
Interface |
up to 4-lane MIPI CSI-2/LVDS |
|
|
|
Maximum Frame Rates and Resolution |
30fps @ full size 1920X1080 |
|
|
|
SNR max |
42.6 dB |
|
|
|
Dynamic range |
120 dB |
|
|
|
Min. Illumination |
≥1LUX at F2.0 |
NO LED |
|
|
Digital interface |
MIPI |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
analog: 3.14 ~ 3.47V digital: 1.2 ~ 1.4V DOVDD: 1.7 ~ 1.9V AVDD: 1.7 ~ 1.9V |
|
|
|
Storage temperature |
–40℃ to 125℃ |
|
|
|
operating temperature |
–40℃ to 105℃ |
|
|
|
Power Consumption |
NO LED |
Max 395 mW software standby: 10 mW |
|
|
white-LED |
TBD |
|
|
|
OS |
Android / linux |
|
|
|
Lens view |
M12 |
LENS |
|
|
Lens Construction |
6G+IR |
|
|
|
F/NO |
1.7 |
|
|
|
EFL |
4.5mm |
|
|
|
FOV |
D:76°±3° |
|
|
|
Shooting distance |
Fixed Focus 1m-50m |
||
