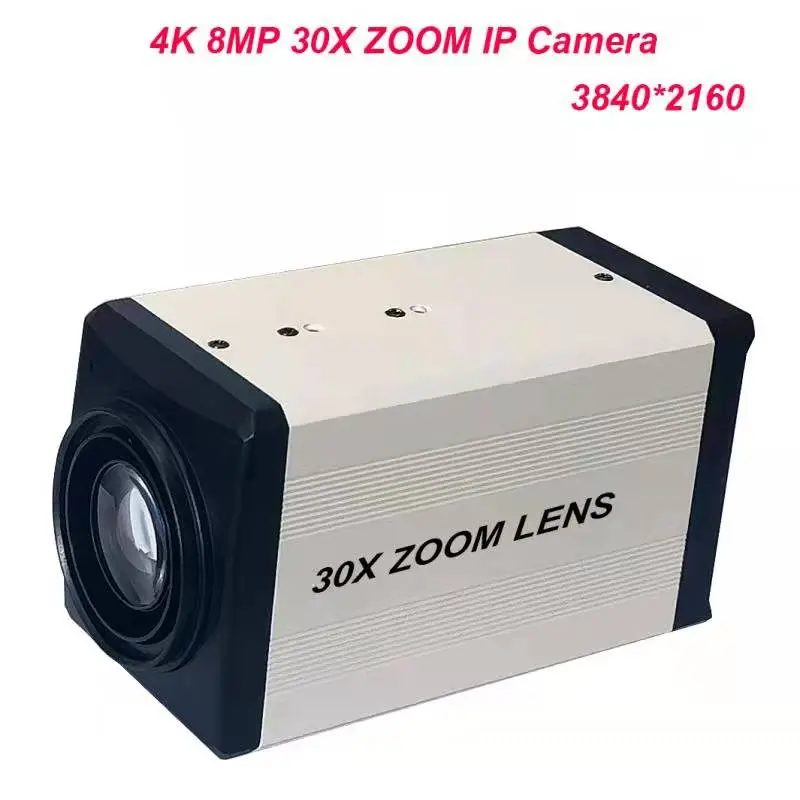

4K 30X zoom IP camera
1. 1/2.8 inch 8 million pixel low light CMOS;
2. With 1T computing power;
3. Support H.265+, H.265, H.264 encoding;
4. Support 2 kinds of light signal control: CDS, PWM signal;
5. Support soft photosensitive: full-color mode, infrared mode, dual-light mode;
6. Support image flip and HDR;
7. Support intelligent analysis: humanoid detection, custom area;

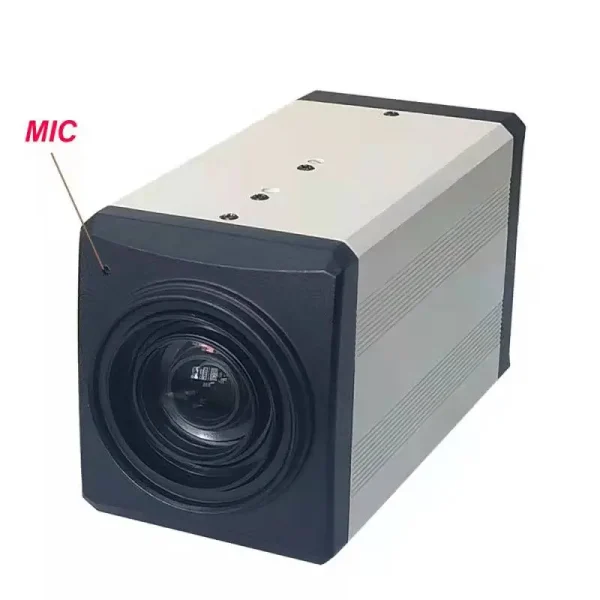

8. Support voice intercom, voice broadcast, and custom voice;
9. Support Onvif;
10. Support character overlay;
11. IP address filtering;
12. Provide SDK (WINDOWS, Android, Linux) development kit
Share to:
Performance Parameter: (if you want customization, please download the table and fill in the parameter you want, password CKVISION)
|
Module No. |
CK-X30-8M-V1 |
|
工作温度 Temperature (Operation) |
-30°C to 65°C |
|
工作湿度 humidity （Operation） |
-10 to 90% |
|
操作系统 Operating System |
Linux |
|
供电 Power supply voltage |
DC12V |
|
图像输出 Video Output |
主码流： Main stream 20@FPS(3840×2160), 30FPS@(3072×2048,2592×1944,2560×1440,2304×1296，1920×1080，1280×720)； 子码流：Sub Stream 720×480,D1,VGA,640×360 |
|
音频 Audio |
音频线性1 路输入1 路输出；G.711 编码标准，支持双向语音对讲，支持音视频同步 One in one out, G.711 Support two-way voice intercom, support audio and video synchronization |
|
网络接口 Network Interface |
1 个RJ45 以太网接口，10/100M 自适应 1 RJ45 Ethernet interface, 10/100M self-adaption |
|
网络协议 Network protocol; |
支持HTTP/RTSP/DHCP/NTP/ONVIF/P2P 等网络协议,可选GB28181、RTMP 以及多种NVR 对接协议; Support HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols, optional GB28181, RTMP and multiple NVR docking protocols; |
|
算力 Computing power |
1T |
|
感光元件尺寸 sensor Array Size |
Imx415 1/2.8 800M |
|
灵敏度 Sensitivity |
2000mV/lux-sec |
|
像素点尺寸 Pixel Size |
1.45µm x 1.45µm |
|
动态范围 Dynamic Range |
85 dB |
|
镜头结构 Lens Construction |
4Group & 12 Elements |
|
通光 F/No |
1.6 |
|
焦距 Focal Length |
4.4~110mm |
|
视场角 FOV |
D=66.42° H=54.26° V=41.26° |
|
畸变 TV Distortion |
<10% |
|
滤光片 IR Filter |
650±10nm with IR cut |
|
摄影范围 Objective range |
1.5m ~ INF |
