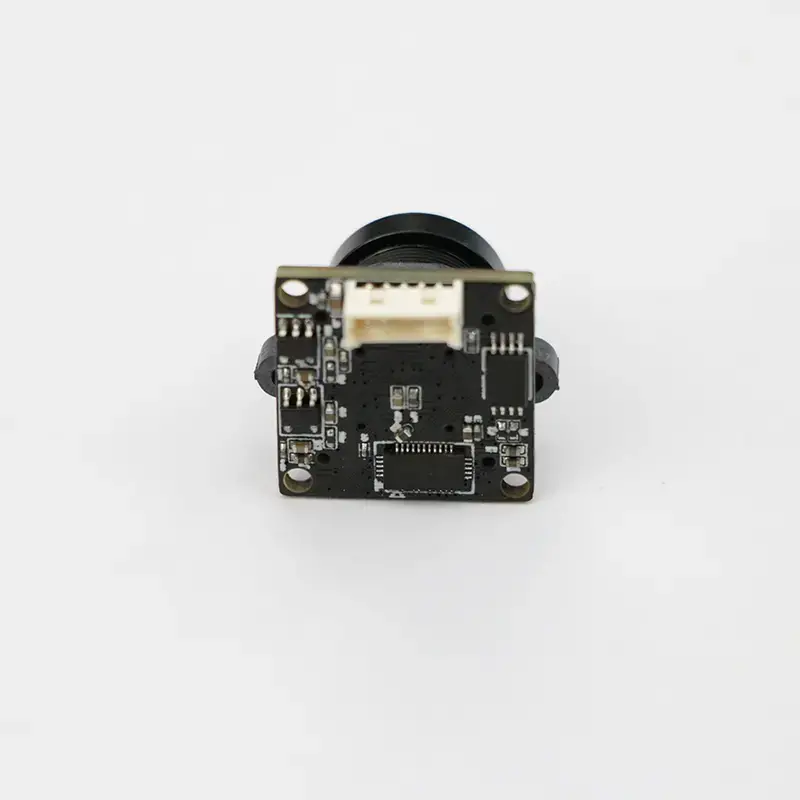

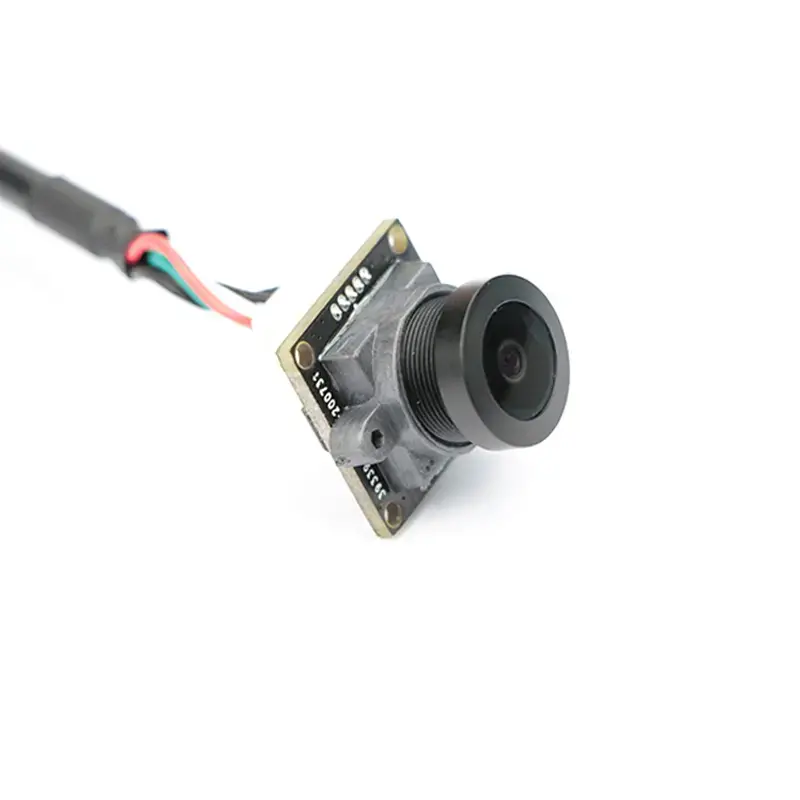

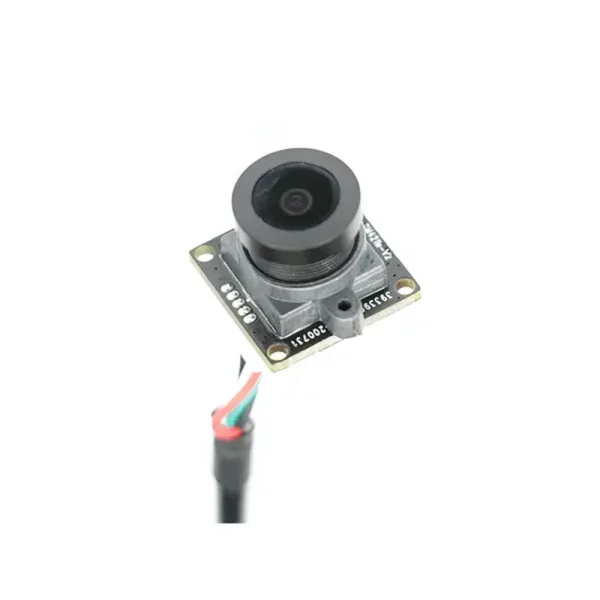

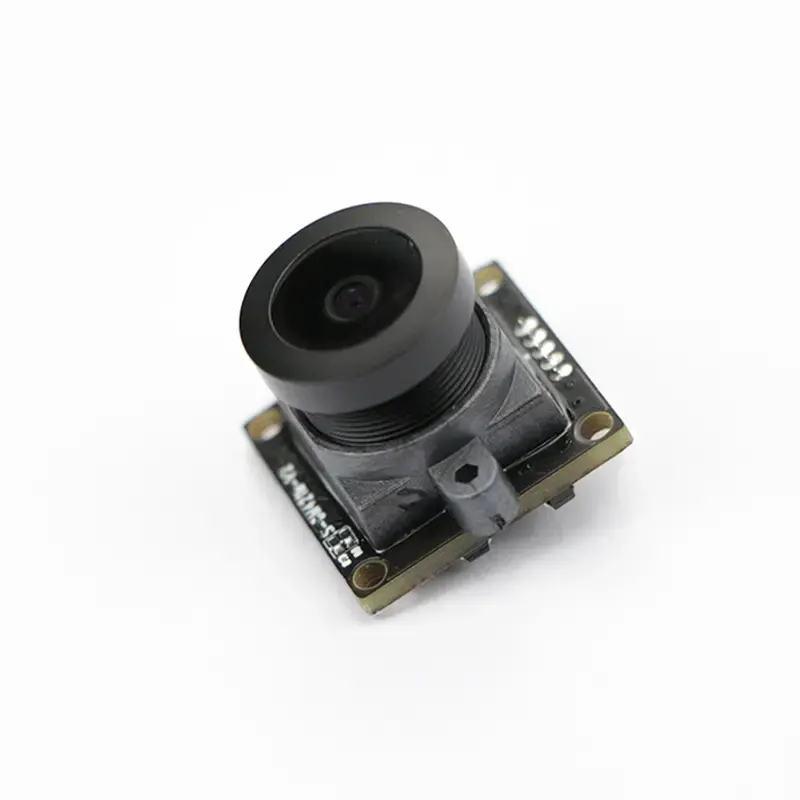

CVBS camera module, AHD camera, 120º wide angle rear camera for car, clear night vision, CK-62-V2.2
This is a CVBS camera module with outstanding ISP quality.
With the H62 CMOS sensor of the SOI sensor (Silicon Optronics, Inc.), resolution 1M (1280×720).
Fixed focus with a 95 degree view angle (customizable lens)
High frame rate 30FPS at full resolution (1280×720);
High sensibility, superior low brightness performance;
ODM, OEM customization is supported.
Payment Terms: T/T
Delivery Time: 2-3weeks
Supply Ability: 500000 pieces/month
Share to:
This AHD camera module is widely used in most applications:
Rear or side view camera of car or oversize vehicle
ADAS(Advanced Driving Assistance System)
DMS(Driver monitor system)camera
Also can be used in these areas:
video conferencing, artificial intelligence (AI), robotics,Internet of things (IoT), machine vision, industrial automation, computer vision, surveillance, educational equipment, medical imaging, agro-technological, embedded devices, traffic monitoring system, etc
Performance Parameter: (if you want customization, please download the table and fill in the parameter you want, password CKVISION)
|
Model |
CK-62-V2.2 |
REMARKS |
|
|
Image Sensor |
H62 |
|
|
|
Image Sensor Size |
1/4 |
|
|
|
Effective Pixels |
1280*720 |
|
|
|
Pixel size |
2.8μm x 2.8μm |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output format |
CVBS, AHD |
|
|
|
Maximum Frame Rates and Resolution
|
1280×720 @ 30fps 640×480 @ 30 fps |
|
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
≥0.001LUX at F1.2 |
NO LED |
|
|
Digital interface |
3pin 1.25mm |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 200mW |
|
|
IR-LED |
|
|
|
|
LED IR-850 |
NO |
|
|
|
OS |
MTK Spreadtrum Qualcomm Rockchip FPGA |
|
|
|
Lens size |
M12 diameter；14mm height |
|
|
|
Lens Construction |
4G2P+IR |
|
|
|
F/NO |
2.0 |
|
|
|
EFL |
3.24mm |
|
|
|
FOV |
D:120°H:100°V:80° ±3° |
|
|
|
Shooting distance |
Fixed Focus， 30cm-infinity |
||
