Cheap 0.3 MP camera, UVC camera, VGA USB camera

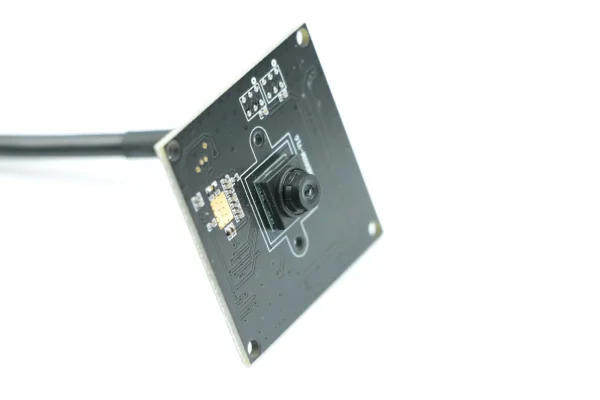

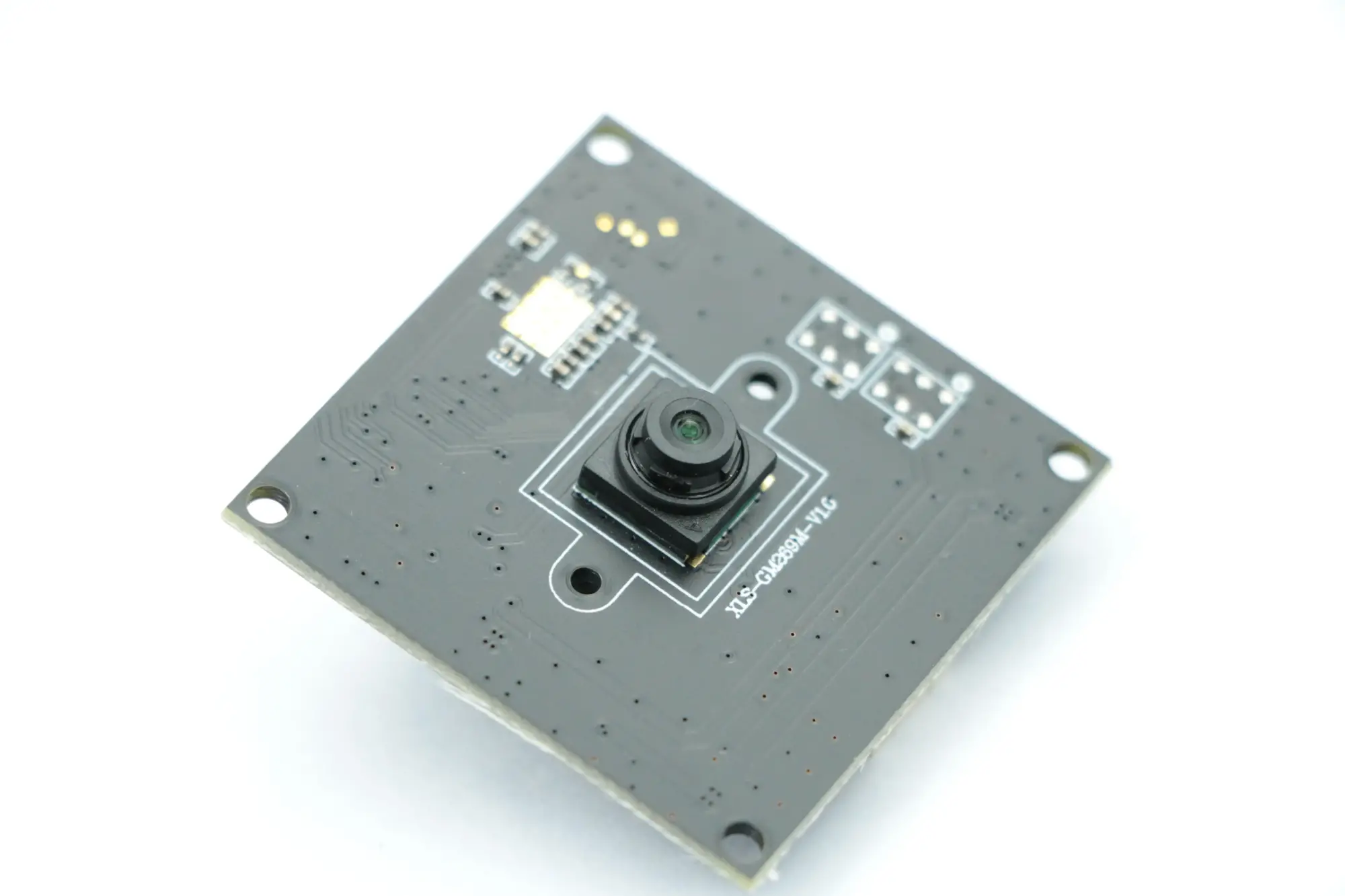

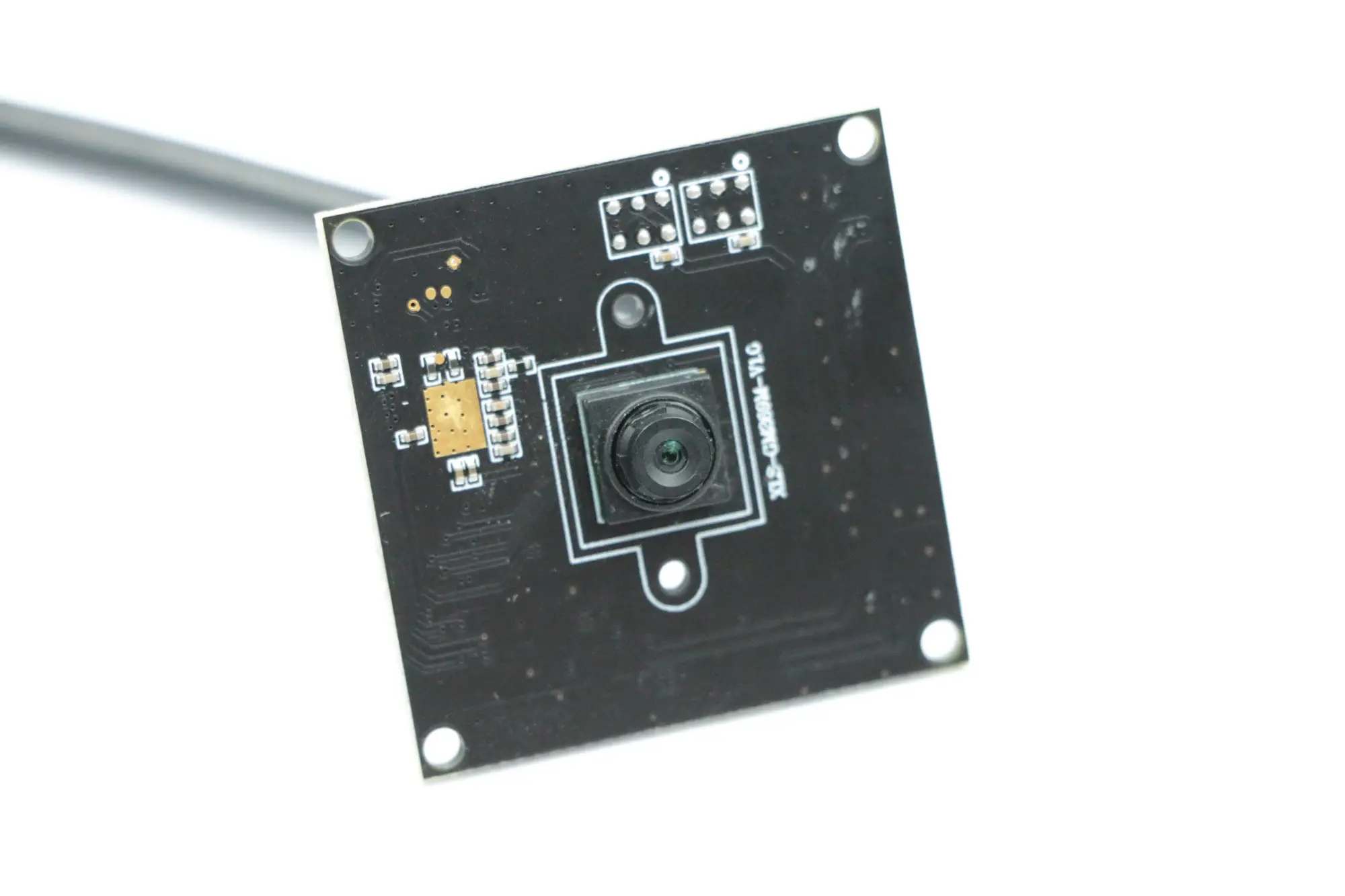

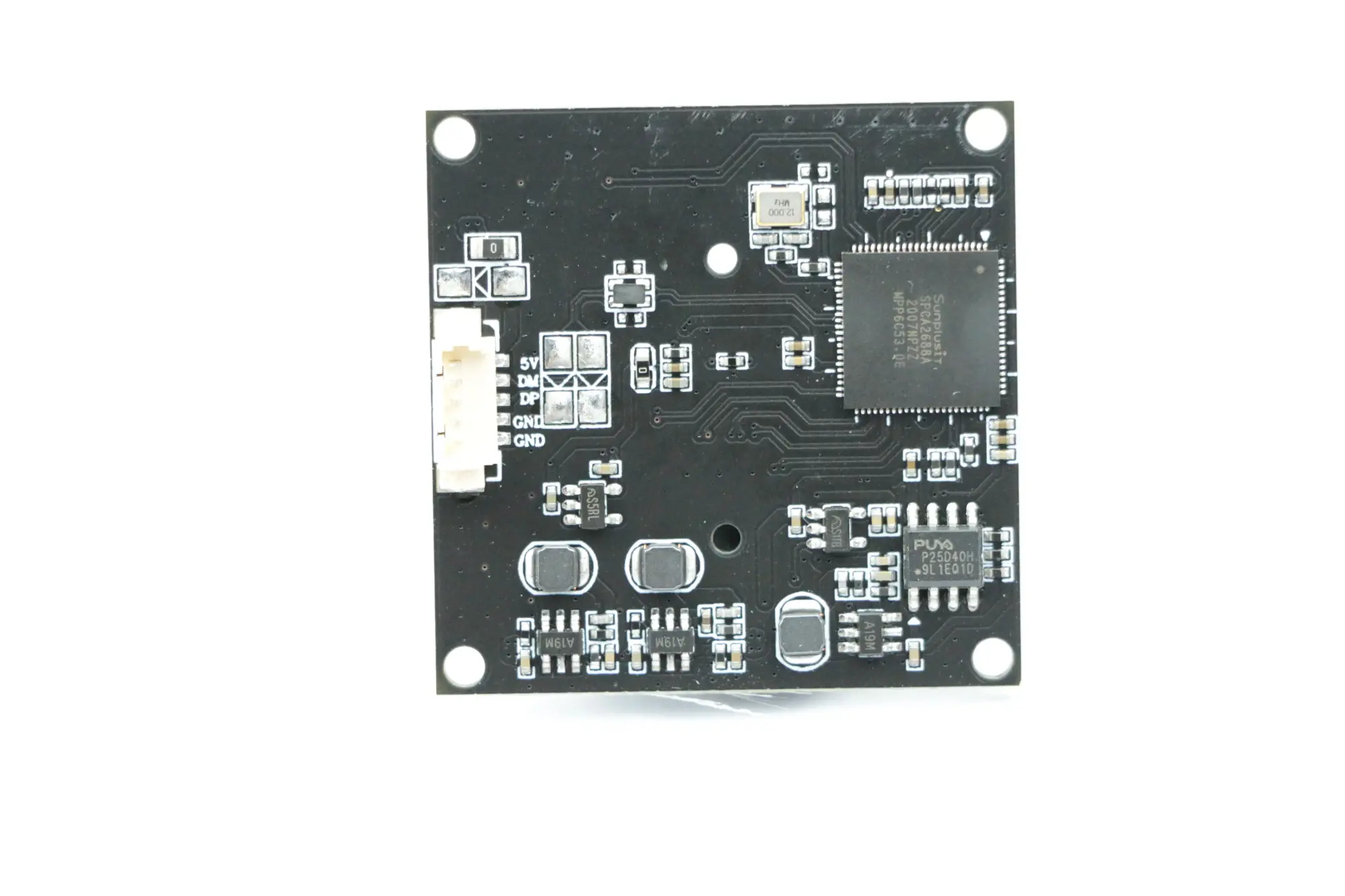

Cheap 0.3MP USB camera, standard shape.
30fps at 640×480-0.3 megapixel resolution.
With GC0308 1/6.5 inch optical format GC sensor.
AE, AWB supported, ISP fine tune customized.
Customizable lens, FOV30 to FOV90.
UVC compatible, be used in Windows XP /vista/seven/8.1/10/Mac /Android/Linux (include UVC)
Payment Terms: T/T
Delivery Time: 2-3weeks
Supply Ability: 500000 pieces/month
Share to:
Performance Parameter: (if you want customization, please download the table and fill in the parameter you want, password CKVISION)
|
Model |
CK-0.3MP-38B |
REMARKS |
|
|
Image Sensor |
GC0308 |
|
|
|
Image Sensor Size |
1/6.5” |
|
|
|
Effective Pixels |
640X480 |
|
|
|
Pixel size |
3.4umX3.4um |
|
|
|
Optical distortion |
≤0.1% |
|
|
|
Image sensor Data output |
YUV Data 10bits |
|
|
|
Video output format |
MPJG |
|
|
|
Maximum Frame Rates and Resolution |
640×480 30fps 320×240 30fps |
MJPG |
|
|
SNR max |
42dB |
|
|
|
Sensitivity |
2.8V/Lux-sec |
|
|
|
Digital interface |
5pin 1.25mm USB2.0 |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 300mW |
|
|
IR-LED |
|
|
|
|
LED IR-850 |
NO |
|
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens size |
M6 |
|
|
|
Lens Construction |
3P+IR |
|
|
|
F/NO |
2.1 |
|
|
|
EFL |
3.24mm |
|
|
|
FOV |
D:70°H:66°V:40° ±3° |
|
|
|
Shooting distance |
Fixed Focus， 30cm-infinity |
||
