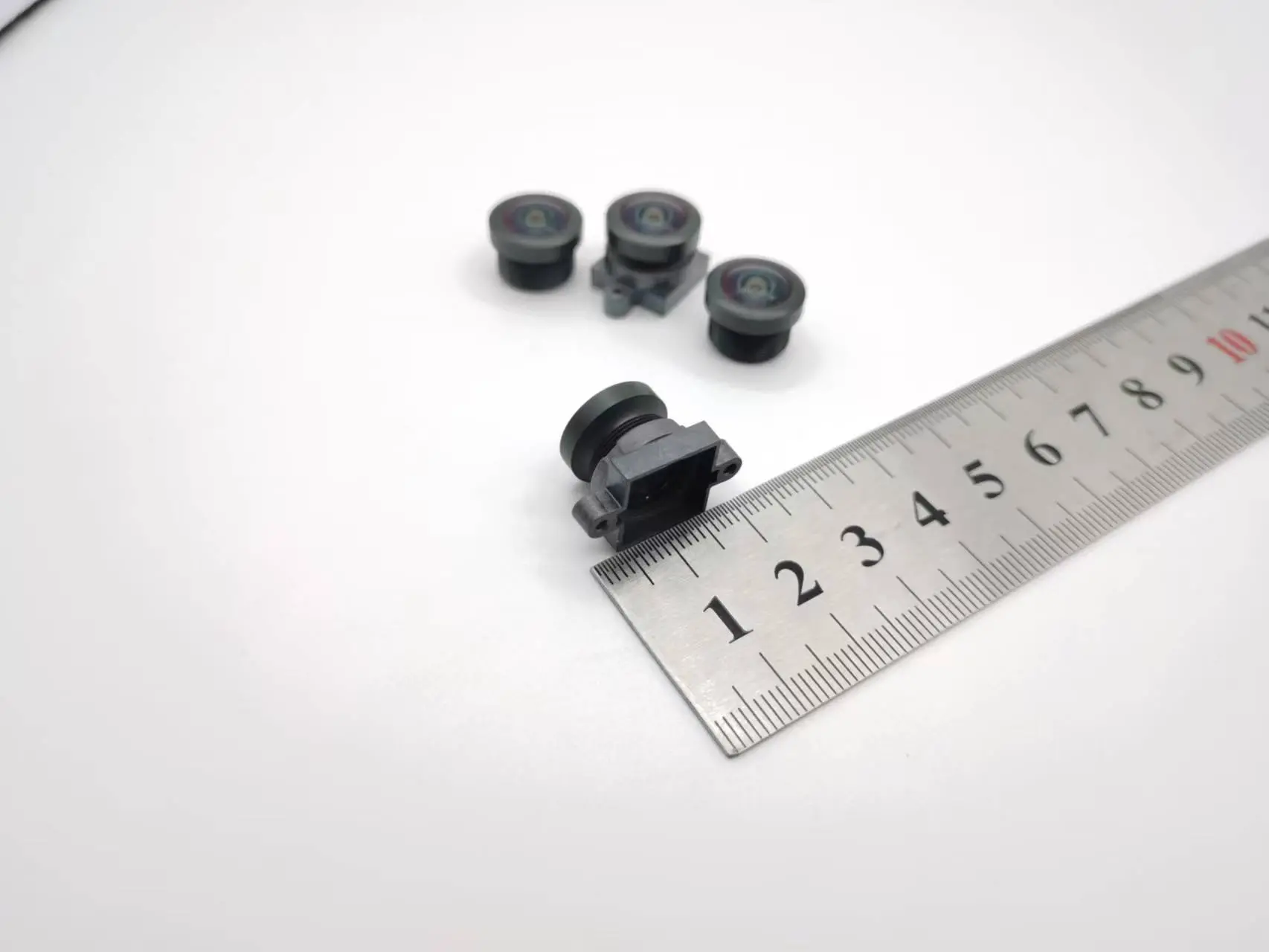

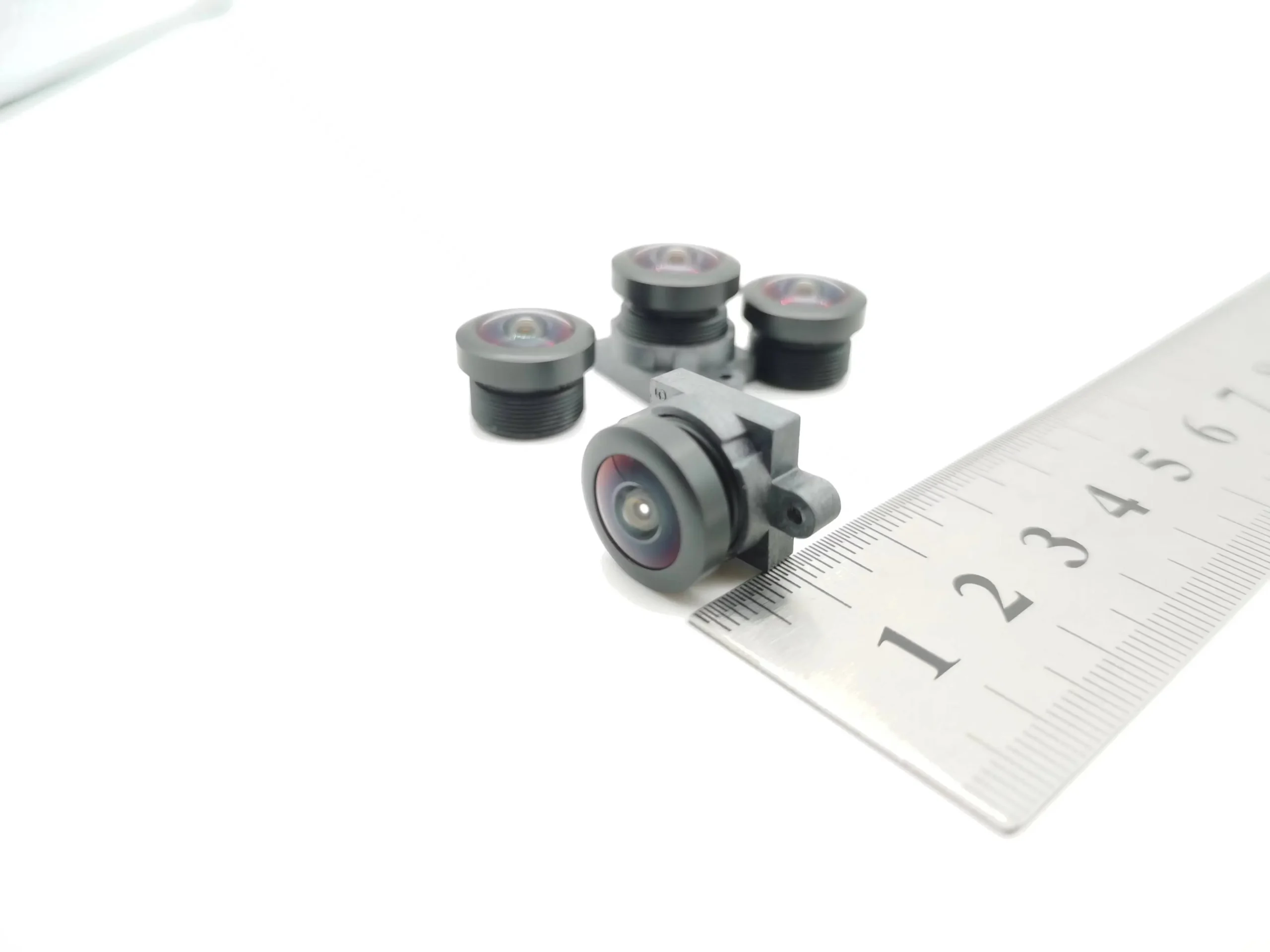

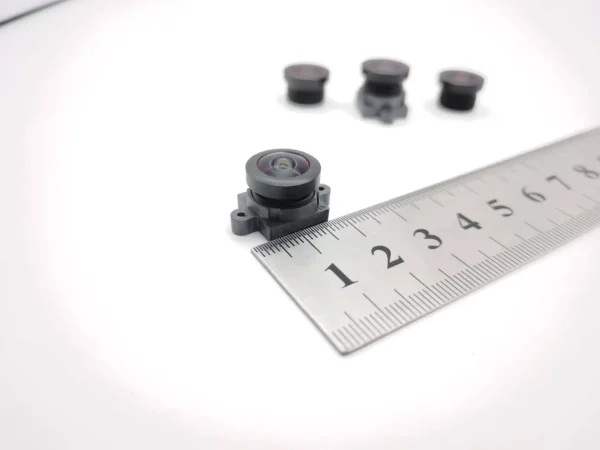

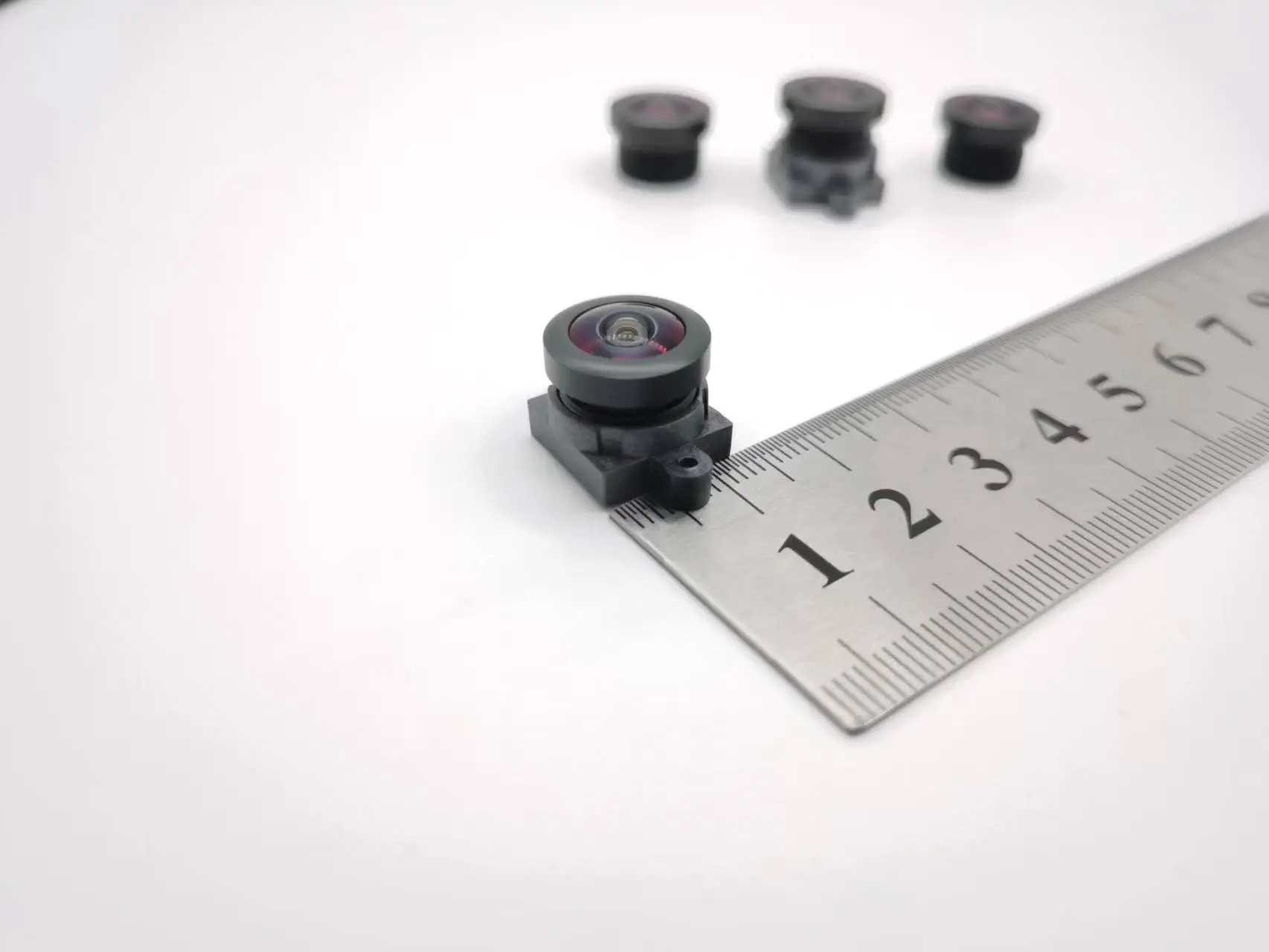

M8; FOV200 fish eye Lens
This is a lens we designed for fish eye camera, with 200 degrees FOV and small size, most customers use it in drones, dome monitors, and automotive camera, panoramic camera, intelligent doorbell. IP67 dustproof and waterproof rating, making it best for most outdoor use scene, TTL 11.78 and M8 Lens thread, making it suitable for small and light products. Especially the drone, developers will pay special attention to the overall weight, then this compact and lightweight lens is the best choice, and if customers need to get rid of the IR (infrared) filter, we can also provide lens without IR (infrared) filter.
Share to:
|
NO. |
Items |
Specification |
|||
|
1 |
F No. |
2.3±10% |
|||
|
2 |
Focal-Length |
1.45 ±5% |
|||
|
3 |
Optical Back Focal Length |
3.06±0.2 (in air) |
|||
|
4 |
Mechanical Back Focal Length |
2.3±0.2 (in air) |
|||
|
5 |
TTL |
11.78±0.2（in air） |
|||
|
6 |
Image circle |
Φ4.1（MAX) |
|||
|
7 |
Lens structure |
6G |
|||
|
8 |
Mount |
M12*P0.5 / can change to M8*P0.5 |
|||
|
9 |
Clamp Force |
60-600gf-cm |
|||
|
10 |
FOV |
Sensor size |
H |
V |
D |
|
1/3″ |
200° |
134° |
200° |
||
|
11 |
Optical Distortion |
1/3″ 110% |
|||
|
12 |
Relative Illumination |
46% |
|||
|
13 |
CRA |
9.7° |
|||
|
14 |
Waterproof and dustproof |
IP67 |
|||
|
15 |
Resolution |
Resolution:1920*1080(2MP) or 1280*720(1MP) |
|||
|
16 |
Weight |
/ |
|||
|
17 |
Operation |
Focus |
Manual |
||
|
Iris |
Fixed |
||||
|
18 |
Storage condition |
-30℃~+80℃；10-90%RH（No condensing) |
|||
|
19 |
Operation condition |
-20℃~+60℃；10-90%RH（No condensing) |
|||
|
20 |
HSF&Safety |
RoHS |
|||
