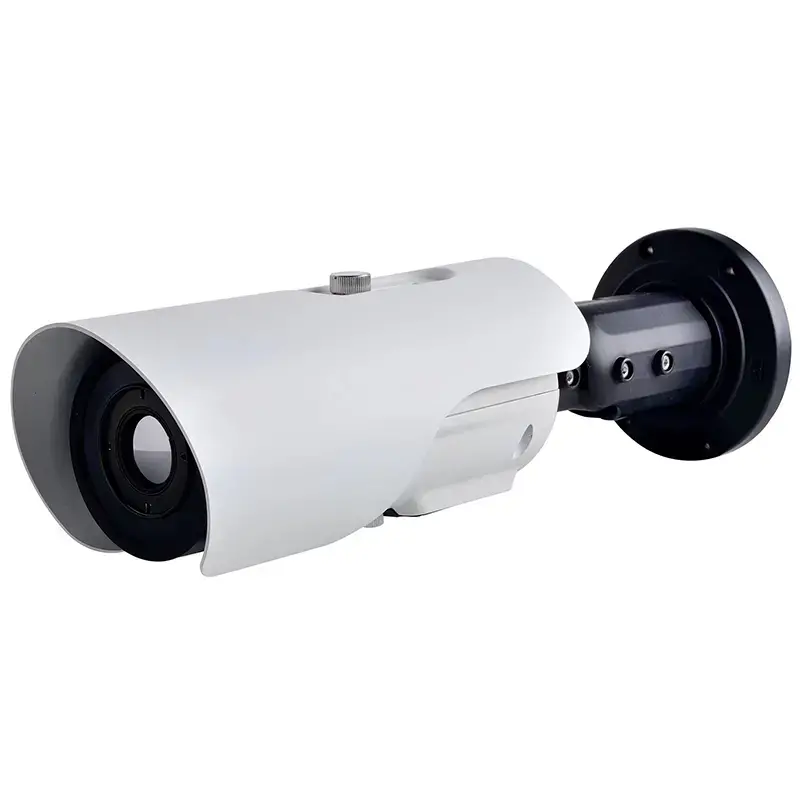

Thermal imaging, temperature measurement camera with IP network
Integrate thermal imaging, temperature measurement and IP network functions in one.
Designed for COVID-19 protection.
On-board temp-detection algorithm.
Support alarm modes: over-temperature alarm, temperature difference alarm, temperature zone alarm, etc.
Support regional intrusion, line crossing and other behavior analysis alarms.
Support audio, I/O alarm, analog video, SD card, RS485 interface, DC12V/POE
Effective pixels 400×300, Sensitivity 40mK
8/15/25/35/50 mm fixed lens optional
Temperature measurement rule types: point, line, polygon area, 17 kind of color control
DVE image enhancement, Standalone operation.
Share to:
Performance Parameter:
|
Thermal Camera
|
|||||
|
Detector Type |
Uncooled IRFPA Micro bolometer |
||||
|
Effective Pixels |
400(H) ×300(V) |
||||
|
Pixel Size |
17 um |
||||
|
Thermal Sensitivity (NETD) |
≤ 40 mK @ F1.0, 300K |
||||
|
Spectral Range |
8 ~ 14 um |
||||
|
Image Setting |
Brightness/Sharpness/Contrast/Mirror/FFC/3D DNR |
||||
|
Color Palettes |
17 (White-hot/Black-hot/Rainbow/Ironbow etc.) |
||||
|
Lens Type |
Fixed |
||||
|
Focus Control |
Manual Focus |
||||
|
Focal Length |
8mm |
15mm |
25mm |
35mm |
50mm |
|
F No. |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
|
Angle of View |
H: 46°, V:35.3° |
H:25.5°, V:19.2° |
H:15.4°, V:11.6° |
H:11°, V:9° |
H:7.7°, V:5.8° |
|
Detection Distance Fire (1m*1m) |
235m |
441m |
735m |
1029m |
1471m |
|
Detection Distance Man (1.8m*0.5m) |
235m |
441m |
735m |
1029m |
1471m |
|
Detection Distance Vehicle (4m*1.5m) |
722m |
1353m |
2255m |
3137m |
4510m |
|
Recognition Distance Fire (1m*1m) |
78m |
147m |
245m |
343m |
490m |
|
Recognition Distance Man (1.8m*0.5m) |
59m |
110m |
184m |
257m |
368m |
|
Recognition Distance Vehicle (4m*1.5m) |
180m |
338m |
564m |
789m |
1127m |
|
Video and Audio
|
|||||
|
Frame Rate |
Main Stream: D1 @ 25/30fps Sub Stream: CIF @ 25/30fps |
||||
|
Bit Rate Control |
CBR/VBR |
||||
|
Bit Rate |
100Kbps ~ 6Mbps |
||||
|
Region of Interest |
Off / On (8 Zone, Rectangle) |
||||
|
Digital Zoom |
16x |
||||
|
Mirror |
Support |
||||
|
Defog |
Support |
||||
|
Motion Detection |
Support |
||||
|
Privacy Masking |
Off / On (4 Area, Rectangle) |
||||
|
DVE Image Enhance |
Support |
||||
|
Audio Compression |
G.711, AMR, RAW_PCM (Optional) |
||||
|
Intelligence |
|||||
|
Intelligent Functions |
Motion detection, Disk alarm, I/O alarm, Temperature detection and alarm |
||||
|
IVS |
Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed |
||||
|
Temperature Detection |
|
|
Temperature Detection |
Support 3 temperature measurement rule types (Spot, Line, Area) |
|
Temperature Alarm |
Over temperature alarm, Temperature difference alarm |
|
Accuracy |
±2℃ / ±2% |
|
Response Time |
≤ 30ms |
|
Theory of temperature measurement range |
-40°C ~ 150°C (-40°F ~ 302°F) |
|
Temperature display mode |
Temperature target ＞5℃, Display absolute temperature value, Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value – average) |
|
Network |
|
|
Ethernet |
RJ-45 (10/100Base-T) |
|
Protocols |
IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, 802.1x |
|
Interoperability |
ONVIF, CGI, SDK |
|
Streaming Method |
Unicast |
|
Max. User Access |
10 Users |
|
Edge Storage |
Local PC for instant recording Built-in Micro SD card, up to 128GB |
|
Web Viewer |
<IE11, Chrome, Firefox |
|
Web Language |
English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian |
|
Interface |
|
|
Ethernet |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
|
Audio Interface |
1ch Audio In,1ch Audio Out |
|
Alarm |
2ch Alarm In,2ch Alarm Out |
|
RS485 |
Support |
|
BNC Output |
Support |
|
Reset Button |
Support (Built-in) |
|
General |
|
|
Power Supply |
DC12V/POE (IEEE 802.3af) |
|
Power Consumption |
Max 5 W |
|
Working Temperature |
-20°C ~ 60°C (-4°F ~ 140°F) |
|
Storage Conditions |
0 ~ 90% RH |
|
Certifications |
CE /FCC |
|
Ingress Protection |
IP66 |
|
Casing |
Metal |
|
Dimensions |
φ110 × 388 mm (φ4.33 × 15.28 inch) |
|
Net Weight |
1.8 kg (4.97 lb) with 15mm lens |
