A WDR dual camera module for the real person detection and face recognition, with AR0230 and H63 inside, could be used in high-end visual doorbell, access control system, ADAS-Advanced Driver Assistance System and DMS-Driver monitor system. -CK vision

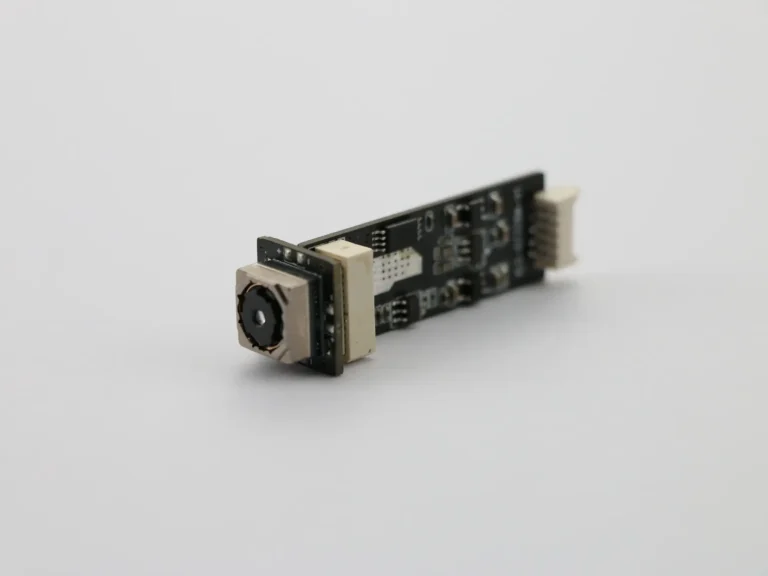

This is a dual USB camera module which is always being used in face recognition
Using 720P SOI H63 and 1080P Aptina AR0230 CMOS sensor.
Fixed Focus with view angle of 80 degrees (FOV can be customized).
30FPS high frame rate at full resolution (1280X720 & 1920×1080).
High sensitivity, superior low-light performance, customization is supported.
Payment Terms: T/T
Delivery Time: 2-3weeks
Supply Ability: 100000 pieces/month
A facial recognition system is a technology capable of matching a human face from a digital image or a video frame against a database of faces, typically employed to authenticate users through ID verification services, works by pinpointing and measuring facial features from a given image.
In recent times, facial recognition systems have been wider uses on smartphones and other forms of technology, such as access system, robotics, security access system. Due to its contactless process, the facial recognition camera module is widely adopted as a biometric technology. A system with facial recognition camera measure human’s physiological characteristics, it is categorized as biometrics. The facial recognition camera module has been deployed in human-computer interaction, video surveillance IOT (internet of things) and automatic indexing of images. Facial Recognition Cameras are also used widely by law enforcement agencies and the military.

Share to:

This dual face recognition camera module is widely used in most applications:

ADAS(Advanced Driver Assistance System), DMS(Driver monitor system)camera, teleconferencing system, video meeting, video conferencing, artificial intelligence (AI), robotics, Internet of things(IoT) surveillance, educational equipment, embedded camera devices, etc

Performance Parameter: (if you want customization, please download the table and fill in the parameter you want, password CKVISION)



Model

720P WDR B/W

2.1M WDR

REMARKS

Scanning Frequency(H)

25HZ

25HZ



Scanning Frequency(V)

50HZ

50HZ



Image Sensor Size

1/4”CMOS

1/2.7”CMOS

Aptina, SOI

Effective Pixels

1280X720

1920X1080



Pixel size

2.8umX2.8um

3.0umX3.0um



Optical distortion

0.35%



Image sensor Data output

Raw Data 10bits



Video output format

MPJG / YUY2



Maximum Frame Rates and Resolution

1280×720 at 25fps

800×600 at 25fps 640×480 at 25 fps

320×240 at 25fps

1920×1080 at 25fps 1600×1200 at 25fps 1280×720 at 25fps

800×600 at 25fps 640×480 at 25 fps

320×240 at 25fps

MJPG

Maximum Frame Rates and Resolution

1280×720 at 25fps

800×600 at 25fps 640×480 at 25 fps

320×240 at 25fps

1920×1080 at 25fps

1600×1200 at 25fps

1280×720 at 25fps

800×600 at 25fps 640×480 at 25 fps

320×240 at 25fps

YUY2

SNR max

≥35dB

≥41dB



Dynamic range

TBD

≥105dB



Min. Illumination

≥0.01LUX at F1.2

≥0.1LUX at F1.2

NO LED

Digital interface

5pin 1.25mm USB2.0



Power requirements

5V±5%



Power Consumption

NO LED

Max 500mW

Max 500mW



IR-LED

Max 2W





LED IR-850

≤90°500mm

NO

LED

Lens view

M12/     FOV80°(f=3.0MM)

LENS

OS

Windows XP /vista/seven/8.1/Mac linux2.6.2(include UVC )
