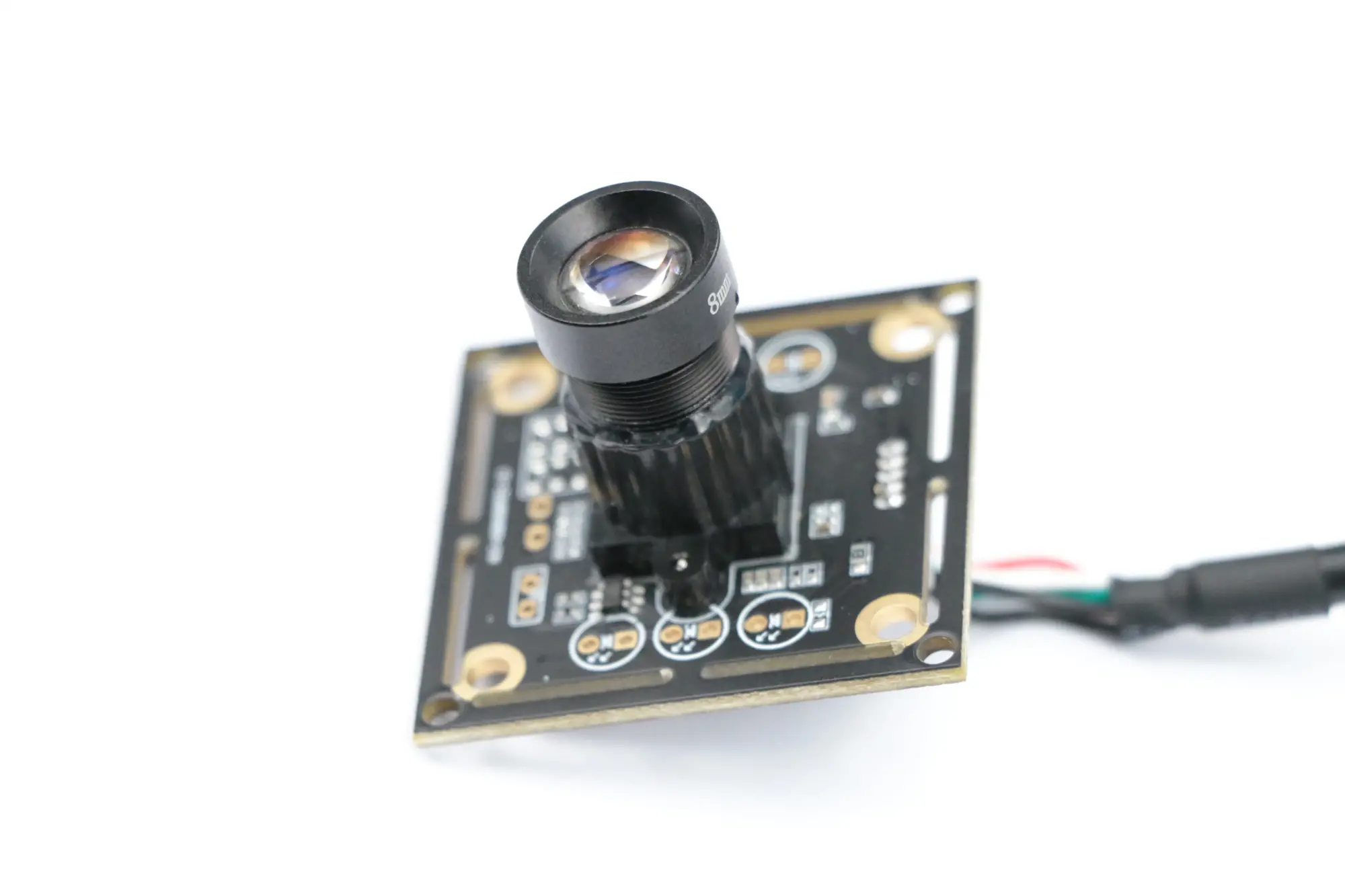

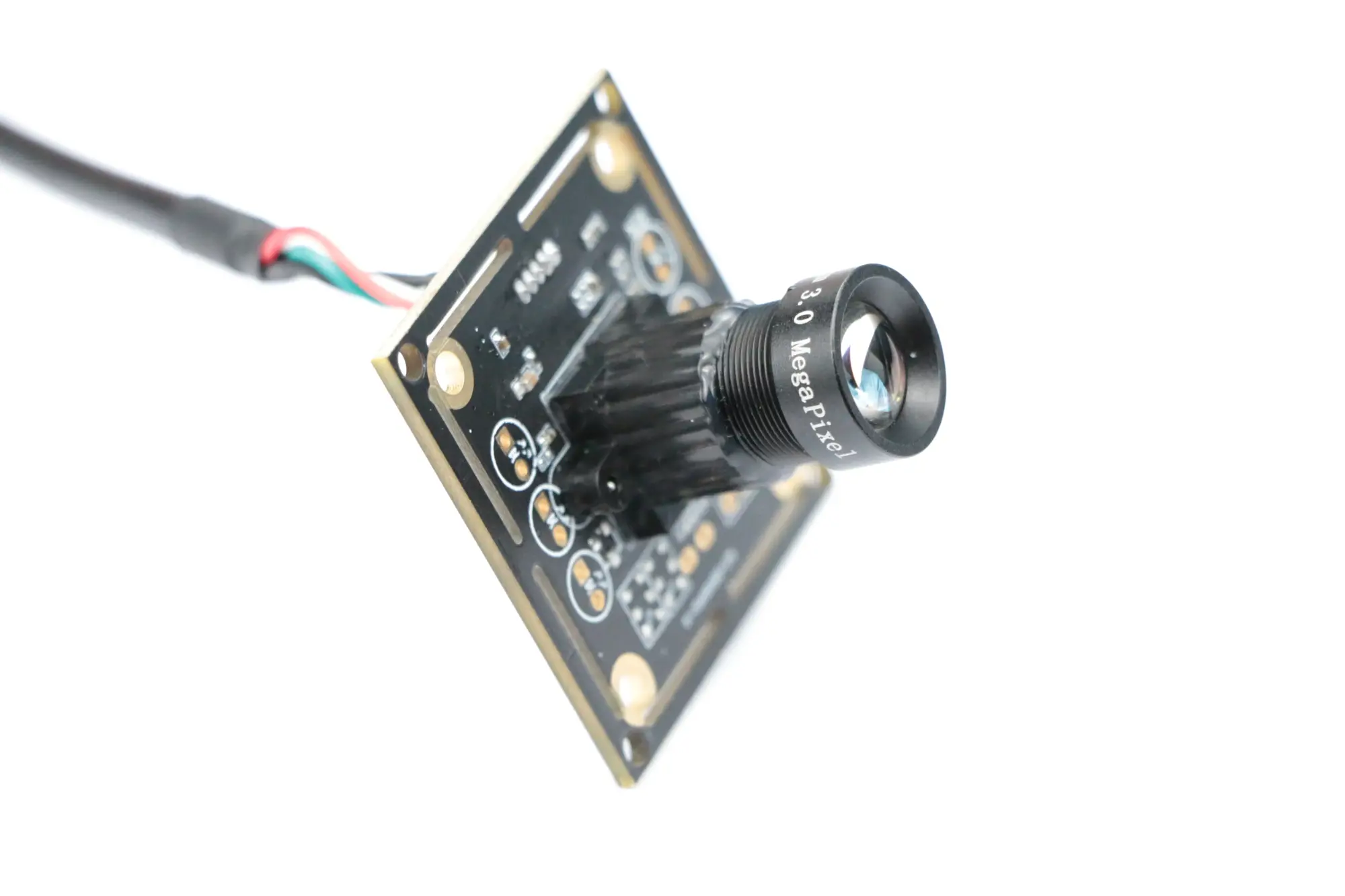

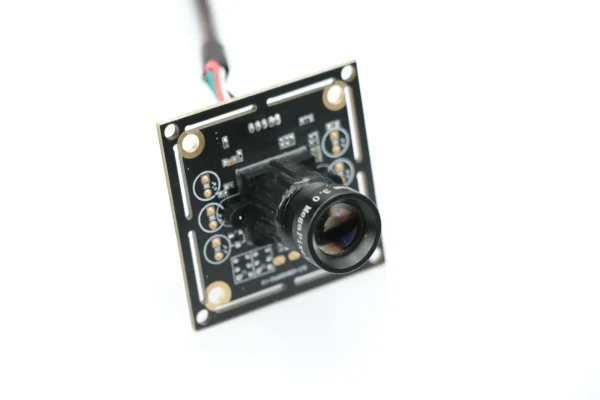

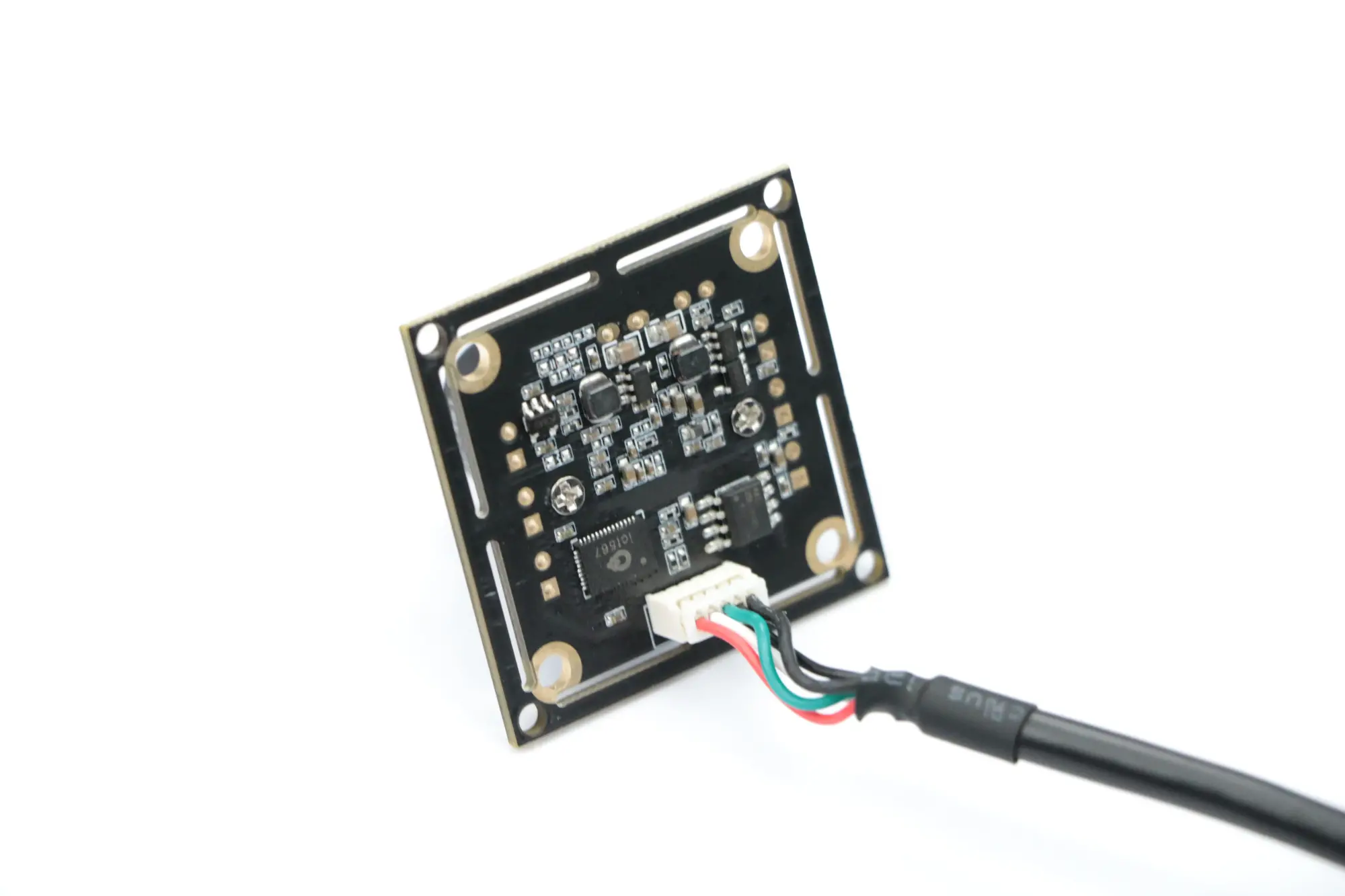

WDR USB camera module, 1080P HDR UVC camera module
Using AR0230 CMOS sensor from Aptina (On Semiconductor), 2MP (1920×1080) resolution.
Fixed Focus with view angle of 80 degrees (lens can be customized).
30FPS high frame rate at full resolution (1920×1080).
High sensitivity, Superior High dynamic range performance.
ODM, OEM customization.
Payment Terms: T/T
Delivery Time: 2-3weeks
Supply Ability: 500000 pieces/month
Share to:
Performance Parameter: (if you want customization, please download the table and fill in the parameter you want, password CKVISION)
|
Module |
CK-0230-V3.0 |
REMARKS |
|
|
Image Sensor |
AR0230 |
|
|
|
Image Sensor Size |
1/2.7 |
|
|
|
Effective Pixels |
1920*1080 |
|
|
|
Pixel size |
3.0umX3.0um |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output format |
MPJG / YUY2 |
|
|
|
Maximum Frame Rates and Resolution |
1920×1080 30fps 1280×720 30fps 800×600 30fps 640×480 30fps 320×240 30fps |
MJPG YUV2 |
|
|
SNR max |
41dB |
|
|
|
Dynamic range |
105dB |
|
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
NO LED |
|
|
Digital interface |
5pin 1.25mm USB2.0 |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 300mW |
|
|
IR-LED |
|
|
|
|
LED IR-850 |
NO |
LED |
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux(include UVC ) |
|
|
|
Lens view |
M12 |
LENS |
|
|
Lens Construction |
6G+IR |
|
|
|
F/NO |
2.1 |
|
|
|
EFL |
3.24mm |
|
|
|
FOV |
D:80°±3° |
|
|
|
Shooting distance |
Fixed Focus 20cm-infinity |
||
