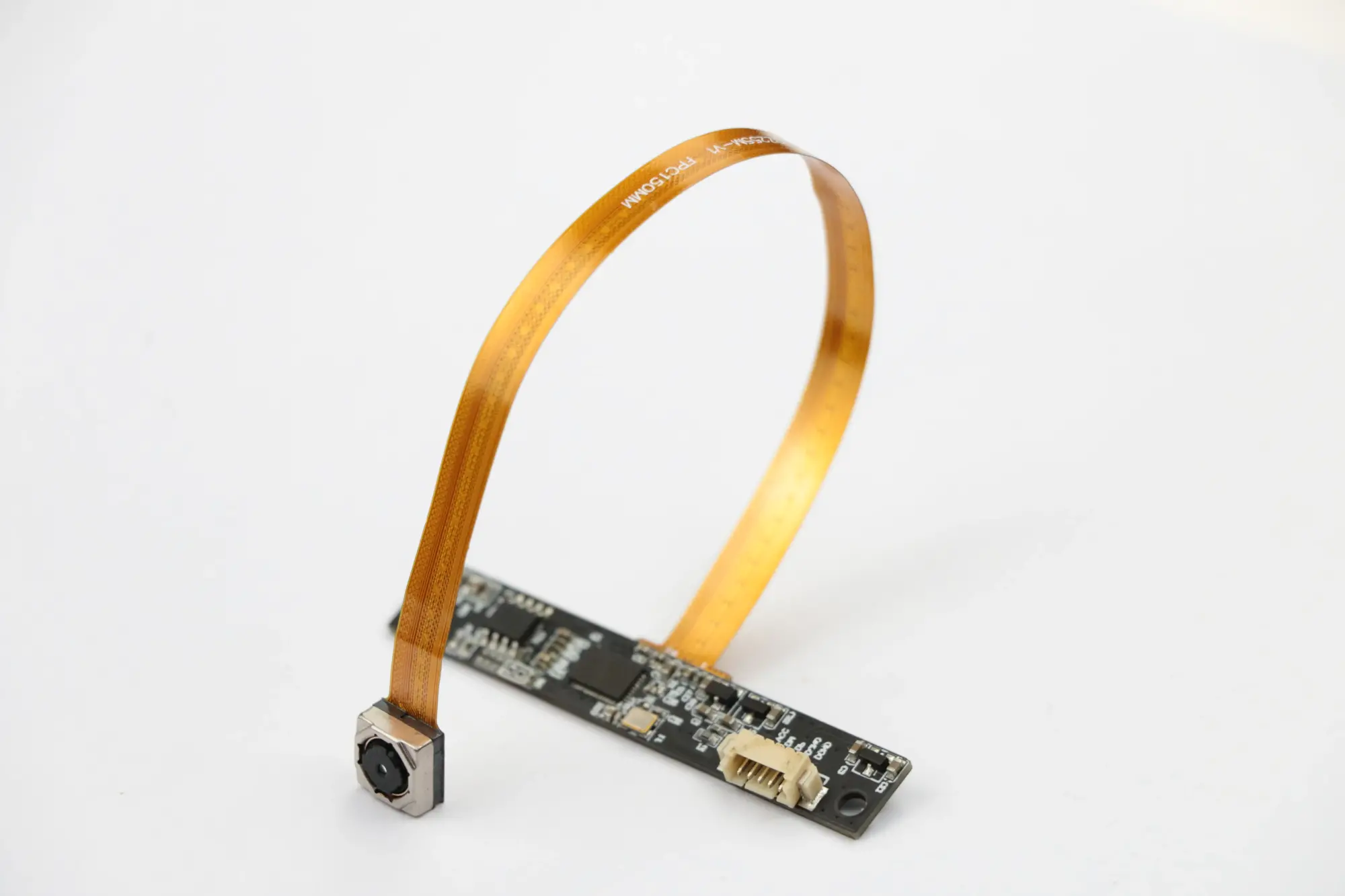

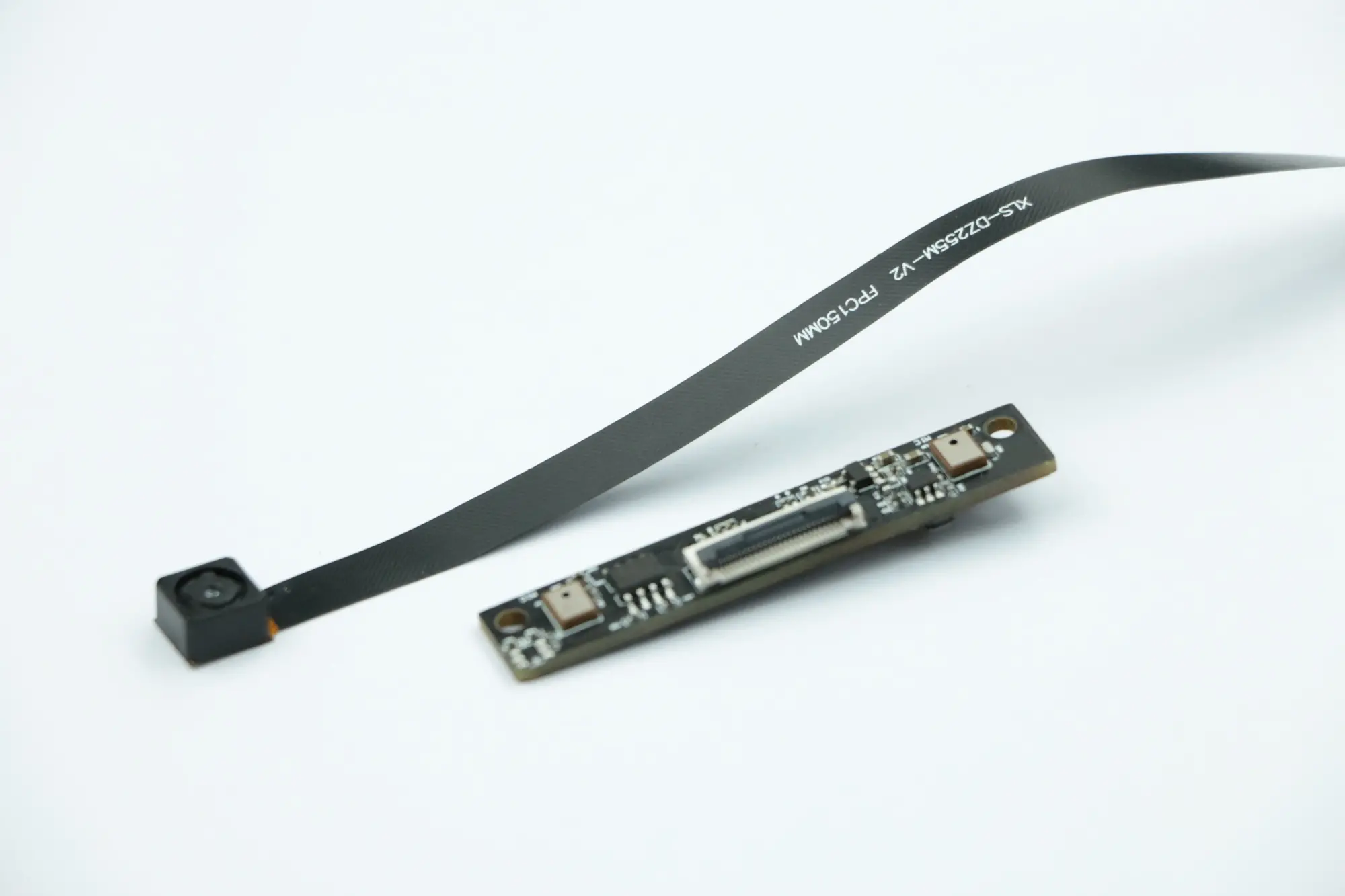

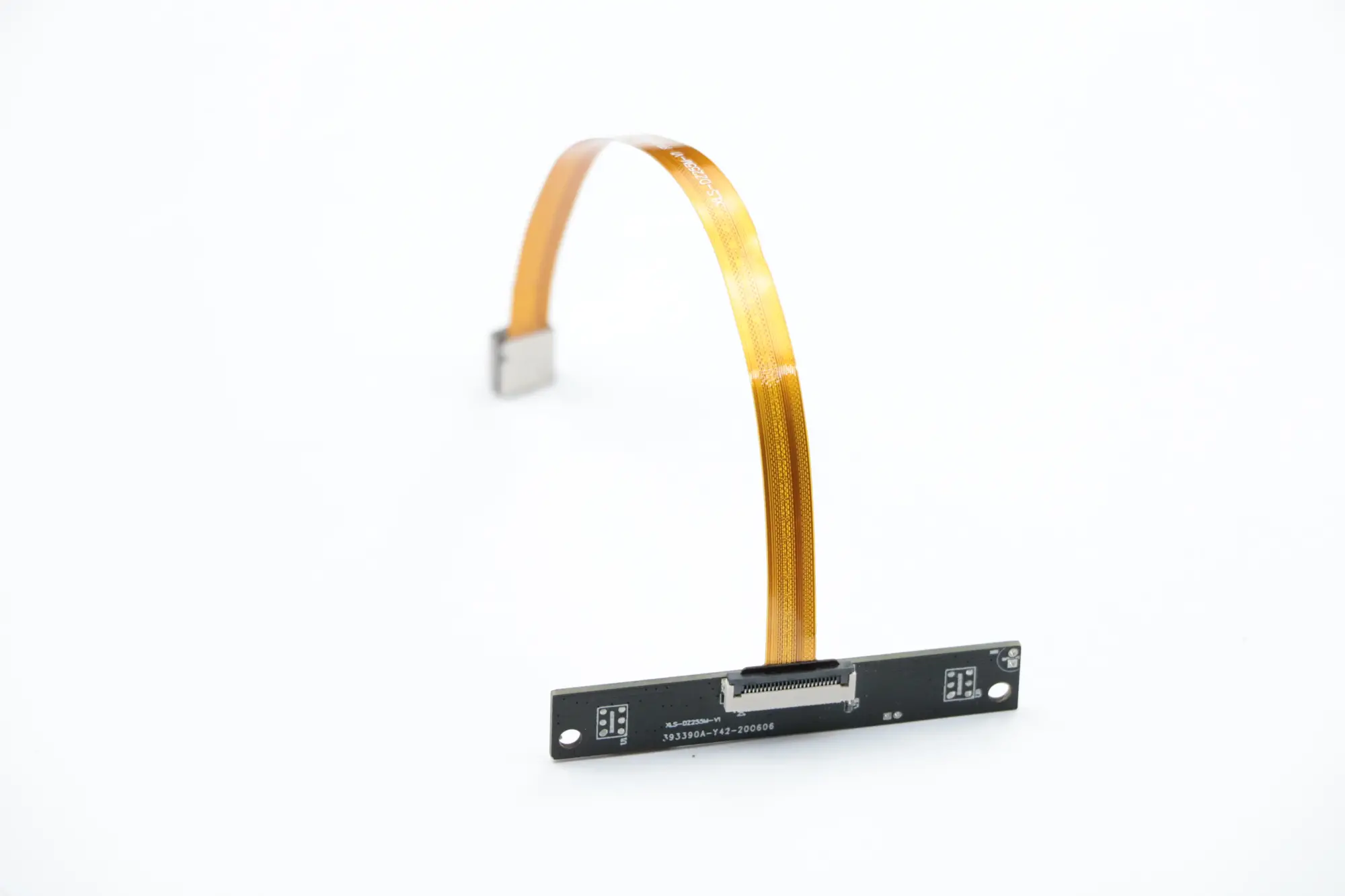

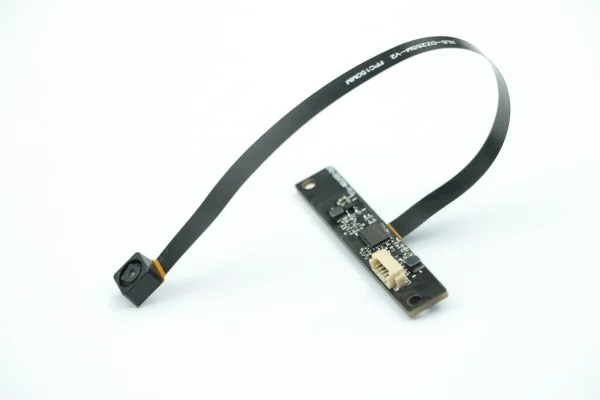

5MP USB camera, separate FPC mode.
1/4 inch sensor OV5640 from OV, 2592X1944 resolution.
15fps at full resolution, 30fps at 1920×1080.
Separate FPC mode, can be used in endoscope.
FOV 60 degrees, fixed focus, no distortion, the lens can be customized.
AEC – Automatic Exposure Control; AGC – Automatic Gain Control; ABLC – Automatic Black Level Calibration, and
AWB – Auto white balance control;
UVC compatible, be used in Windows XP /vista/seven/8.1/10/Mac /Android/Linux (include UVC)
Payment Terms: T/T
Delivery Time: 2-3weeks
Supply Ability: 500000 pieces/month
Share to:
Performance Parameter: (if you want customization, please download the table and fill in the parameter you want, password CKVISION)
|
Model |
CK-DZ255M-V1 |
REMARKS |
|
|
Image Sensor |
OV5640 |
|
|
|
Image Sensor Size |
1/4 |
|
|
|
Effective Pixels |
2592X1944 |
|
|
|
Pixel size |
1.4umX1.4um |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output format |
YUV2 MJPG |
|
|
|
Maximum Frame Rates and Resolution |
2592 x1944@ 15fps 1920x1080 @30fps 1280x960 @ 45fps 640×480 @ 60 fps 320×240 @ 90fps |
MJPG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Digital interface |
5pin 1.25mm USB2.0 |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 300mW |
|
|
IR-LED |
|
|
|
|
LED IR-850 |
NO |
|
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens size |
8.5 |
|
|
|
Lens Construction |
5G+IR |
|
|
|
F/NO |
2.1 |
|
|
|
EFL |
2.24mm |
|
|
|
FOV |
D:60°H:56°V:40° ±3° |
|
|
|
Shooting distance |
Fixed Focus, 30cm-infinity |
||
